| Article number: | C68353U40MD-DBLU |
| Availability: | In stock |
DESCRIPTION
An ebike that elevates the art of getting around. Function meets pleasure. Comfort meets capability. Speed meets style. From point A to point B, or to no point in particular – it's your best way there.
- Where it thrives
- Around town and beyond
- What it's built for
- Comfort and Ease
- Highlights
- Low step-thru SmartForm C2 Alloy frame / Suntour Mobie suspension fork
- Gates Carbon Belt drive / Shimano Nexus 7-speed internal gear hub
- Bosch Smart System - Active Line Plus 20 mph drive-unit / 500Wh battery / Range: up to 70 miles
FEATURES
Power - Bosch Battery
Bosch's new Smart System Active Line Plus unit and 500Wh battery provide effortless power.
Speed
This e-bike drive system provides pedal assist up to a maximum speed of 20mph. above that, it's all you.
Range
Up to 70 miles of assisted range means you can go to - and come back from - just about anywhere.
TECHNOLOGY
 |
 |
|
Premium Electric ExperienceMavaro 3 is powered by the new Bosch’s Active Line Plus drive unit, packing a 500Wh battery, boosting your power up to 340%, with an easy-to-read Intuvia display on the handlebar. Effortless acceleration, compelling versatility, and a range of up to 70 miles on a single charge. |
|
Clean, Quiet and EasyThe combination of the Gates belt system with a Shimano internal gear hub makes an ideal urban drivetrain. No dirty chains, no noisy derailleurs; just smooth, simple, reliable shifting always.
|
|
|
|
|

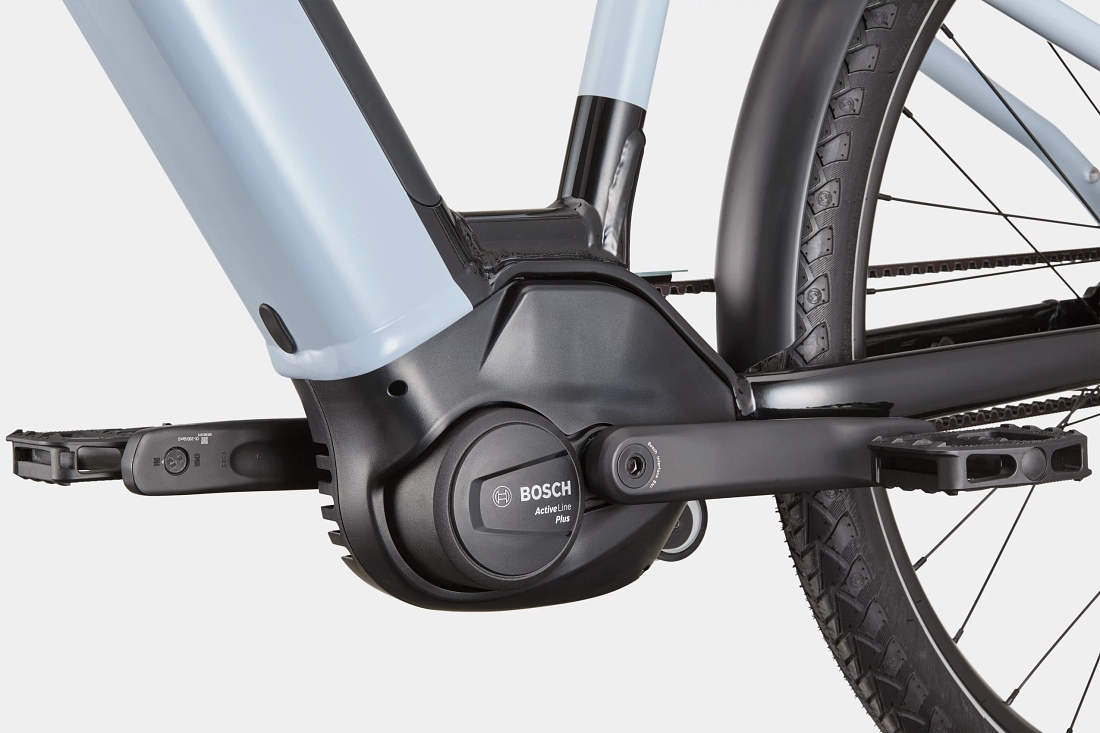

Bosch Active Line Plus MotorBosch's Active Line Plus drive unit delivers silent, natural-feeling power. With up to 50Nm of torque, it can boost your power by up to 340%. Effortless acceleration and compelling versatility. |
|
Convenient ChargingMavaro 3's charge port is easy to reach with a charge cable. Or, if you want to take the battery off and charge it inside, it pops out of the frame, and back in, with an easy click. |
|
|
|
|
Be SeenTo make you more visible in all light conditions, Mavaro 3 features a running light integrated into the front of the frame, plus a powerful Blue Line 30 headlight and a bright taillight.The combination lets you be seen up to 50 meters from behind, up to 3000m from the front, and will light the road up to 50 meters ahead of you at night. |
|

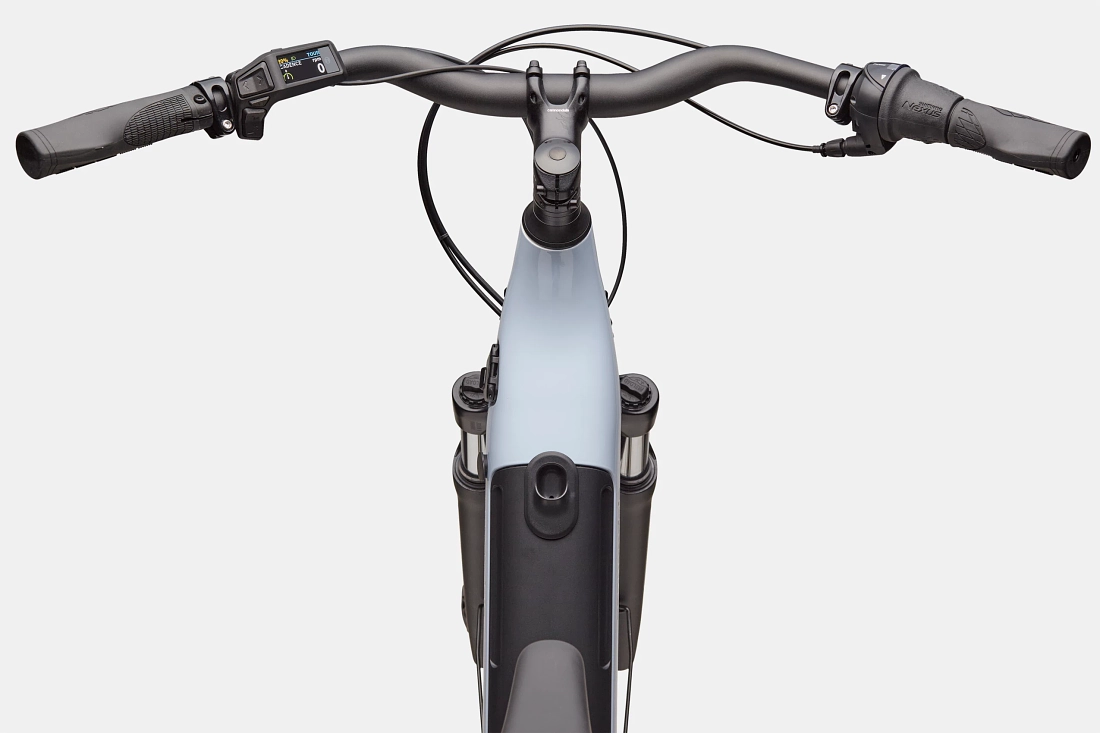

Intellimount StemLets you mount your phone easily and securely on the stem with an SP-Connect adapter. |
|
|
|
|
Right-sized Wheelsor the best of speed, comfort, capability and fit, the larger sizes of Mavaro run on 29" wheels, while the smallest size uses 27.5" wheels. |
|
|
SPECIFICATIONS
|
Platform |
Mavaro Neo |
|
Brakes |
|
|
Model Name |
Mavaro 3 Low StepThru |
|
Brakes |
Riderever Attack-U-OE, 2-piston hydraulic disc, 180/180 rotors |
|
Model Code |
C68353U |
|
Brake Levers |
Riderever Attack-U-OE, hydraulic disc |
Frameset |
|
|||
|
Frame |
SmartForm C2 Alloy, low step-thru, removable 500Wh downtube battery, integrated headtube reflector, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection |
|
||
Wheels |
||||
|
Rims |
Alloy, double wall, 32 hole, 25mm internal width, disc-specific |
|||
|
Fork |
SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset |
|
Spokes |
Stainless Steel, 14g |
|
Headset |
Semi-Integrated, Tapered; 1-1/8"-1-1/2" |
|
Tire Size |
29x2.3 |
E-System |
|
Wheel Size |
27.5/29 |
|
|
Drive Unit |
Bosch Active Line Plus, Smart System, 20mph |
|
Hubs |
(F) Shimano MT400B, 110x15mm thru-axle / (R) Shimano Nexus 7, 7-speed internal gear hub |
|
Battery |
Bosch PowerTube, 500Wh
|
|
Tires |
Continental eContact Plus w/ reflective sidewalls 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-XL) |
|
Charger |
Bosch 4A |
|
||
|
Display |
Bosch Purion 200
|
|
Component |
|
Drivetrain |
|
Handlebar |
Cannondale Low-Rise Urban, butted 6061 Alloy, 31.8mm, 25mm rise, 35° sweep, 680mm |
|
|
Rear Derailleur |
Shimano Nexus 7, internal gear hub |
|
Stem |
Cannondale 3, Alloy, 31.8mm clamp |
|
Shifters |
Shimano Nexus, 7-speed, twist style
|
|
Saddle |
Fizik Essenza Moderate M |
|
Chain |
Gates CDX Carbon Belt |
|
Grips |
Cannondale Ergo Fitness Dual Density, Lock-on |
|
Crank |
FSA for Bosch |
|
Seatpost |
Cannondale 3, 6061 Alloy, 31.6
|
|
Rear Cogs |
Gates CDC 26T |
|
Extra |
|
|
|
Extra 1 |
Integrated headtube reflector, Axa Compactline 35E front light, Axa Blueline rear light, Abus framelock (key-matched with battery lock), Tubus rear rack (25kg, Racktime compatible), full-coverage fenders |
||
