| Article number: | 5032008107-IRON-L |
| Availability: | In stock |
DESCRIPTION

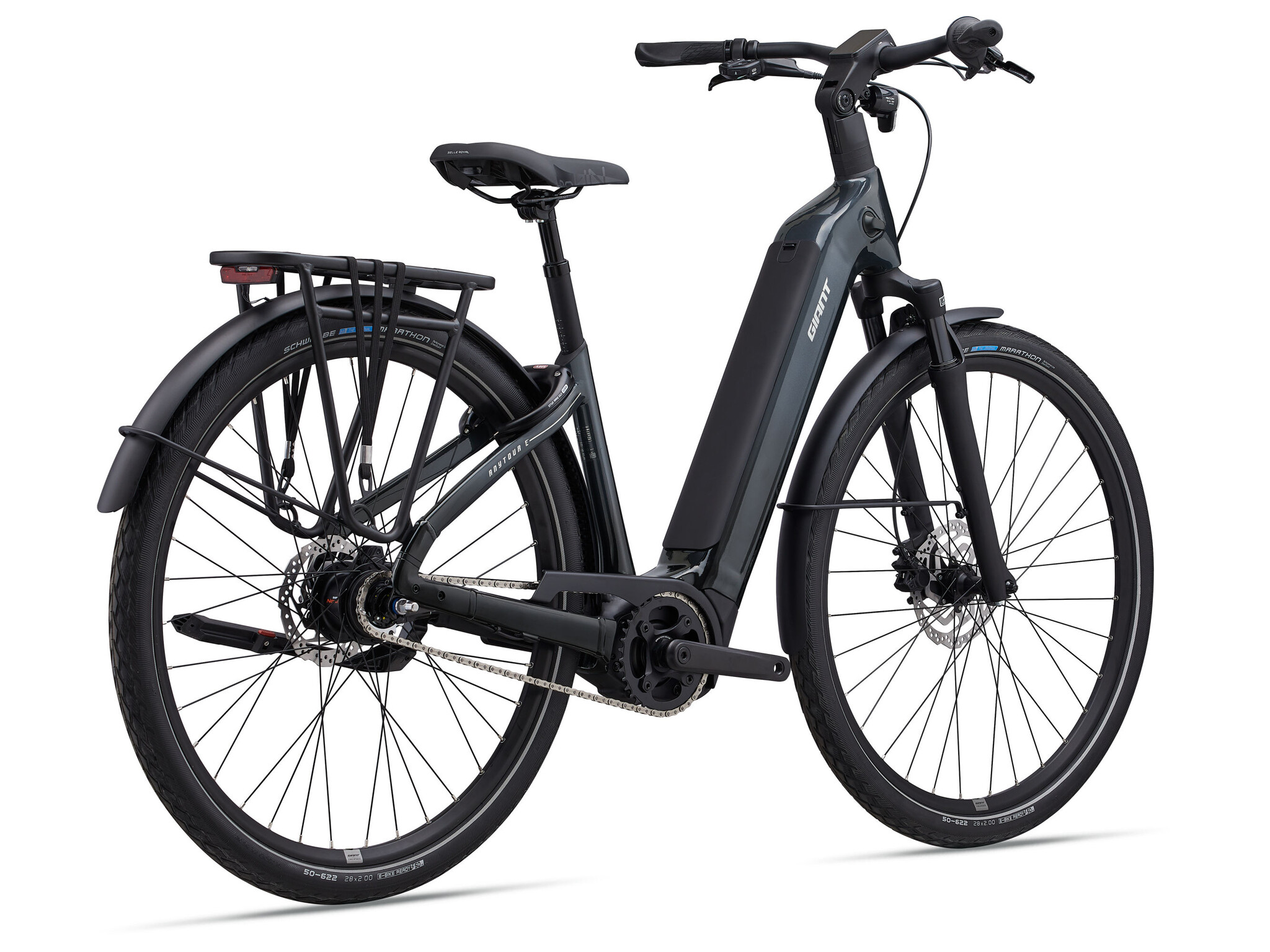

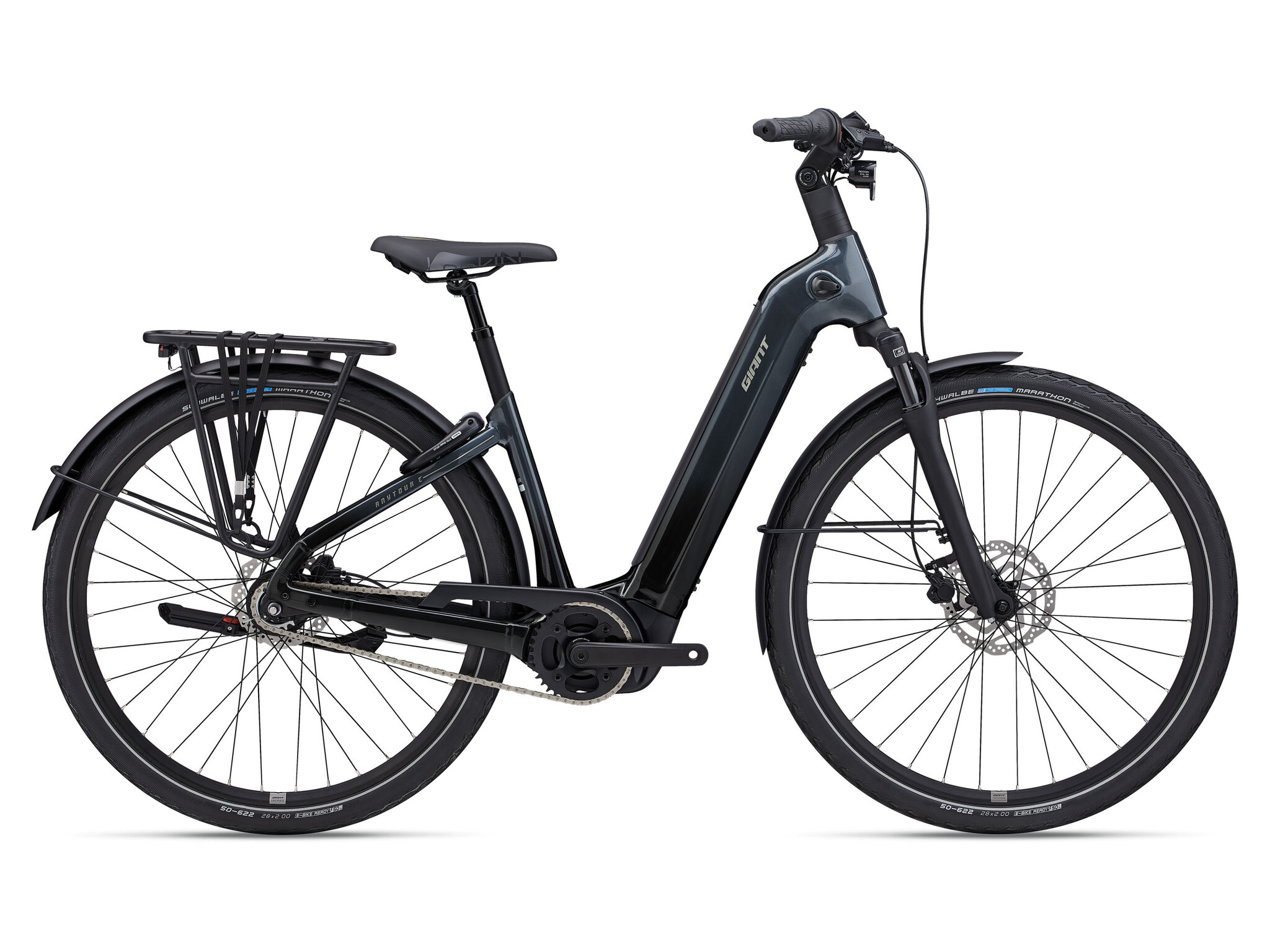

This versatile and practical E-bike is ideal for daily commuting and other adventures. It has a full color display with on-board navigation and all the built-in features you can think of including suspension, lights, fenders and racks.
KEY PERFORMANCE FACTORS
SMART POWERThe new SyncDrive motor has Smart Assist mode, which determines the support you need and automatically adjusts power output. A carbon belt drive (on select models) delivers clean, low-maintenance performance for added reliability in rugged off-road conditions. |
|
FULLY INTEGRATED CONTROLSThe Ride Dash Evo with on-board navigation is cleanly integrated into the stem to help riders find their way. Cables and wires for all cockpit controls, including the brakes, dropper seatpost lever, shifters, RideControl Ergo 2 and RideDash EVO, are internally routed and tucked into the frame for a tidy aesthetic. |
|
ADVENTURES IN COMFORTThe frame’s lightweight design, available in a low-step-through frame design, delivers a confident, comfortable ride. Purpose-built features including an integrated trailer mount and a rear carrier rack with a MIK HD interface make it quick and easy to customize carrying capacity and add other accessories such as bags or a child seat with a secure click mechanism. |
RANGE
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
Below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
Energypak 500 / SyncDrive Core
HIGHLIGHTS
The AnyTour E+ is powered by a SyncDrive motor with Smart Assist mode, which determines the support you need and adjusts pedaling support automatically so you can fully concentrate on the road and your own riding experience. On-board navigation with a Ride Dash EVO display is seamlessly integrated into the handlebar. Built-in lights increase your safety with added visibility on the road. And to ensure a more comfortable ride, the AnyTour E+ has a suspension fork to soak up bumps and smooth out your ride.
SYNCDRIVE SPORT 2

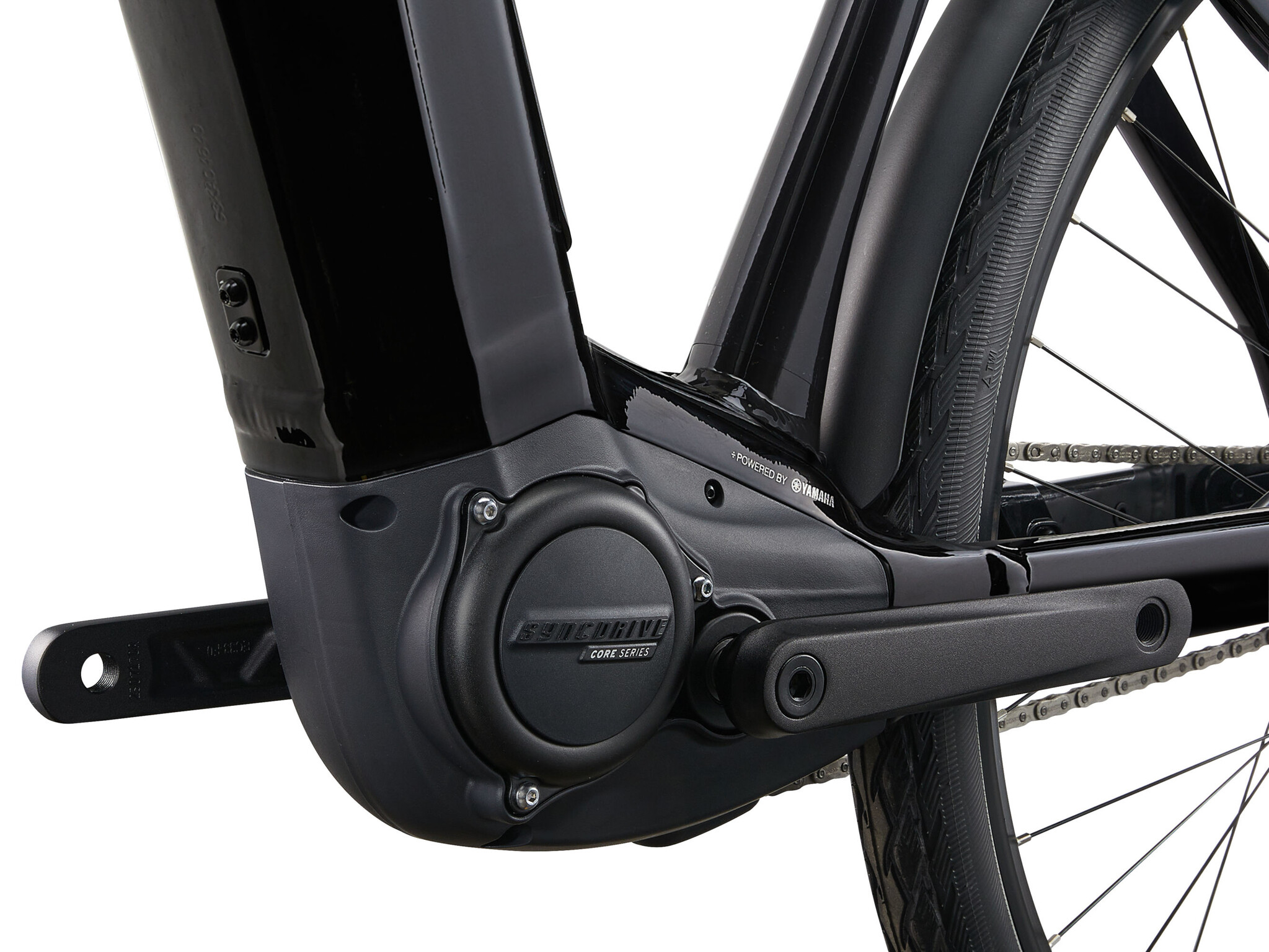

Compact 75Nm motor is sonically tuned for smooth, quiet performance. The motor engages instantly when power is applied to the pedals for quick acceleration and smooth, natural pedaling support.
SMART ASSISTSix smart sensors precisely measure power being applied to the pedals so the motor can provide just the right amount of assistance to create a natural, powerful riding experience.
ENERGYPAK SMART 625Cleanly integrated into the frame, this premium battery technology produces continuous communication between the battery and charger for optimized performance. It can charge up to 80 percent in 2.2 hours and is compatible with our EnergyPak Plus range extender, for 250Wh of additional power.

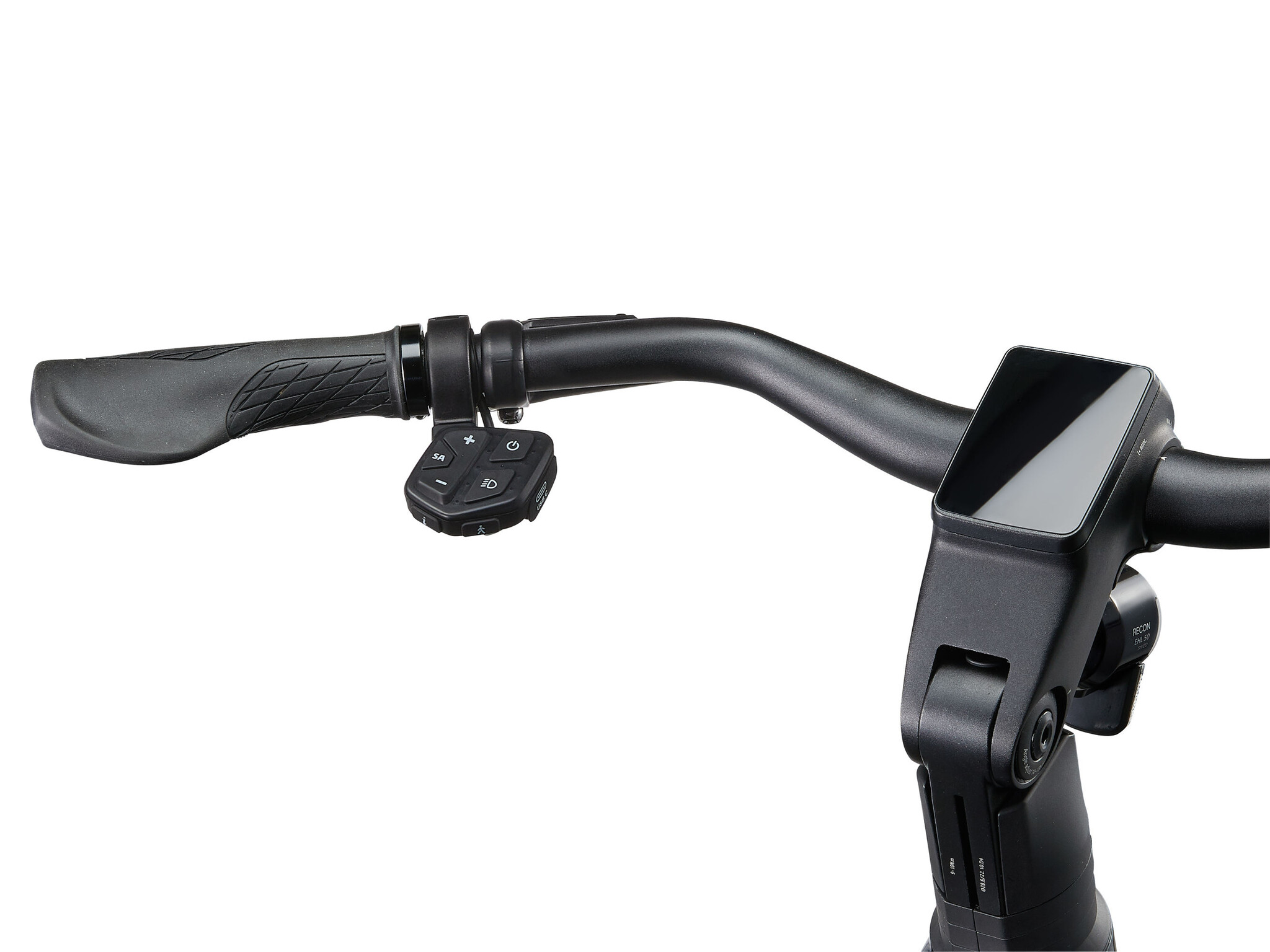

RIDECONTROL ERGO 2This control unit is designed with large, ergonomically designed buttons that are easy to reach. LEDs indicate battery level and support mode.
RIDE DASH EVOFull-color display on the stem is cleanly integrated with internal cable routing. The low-profile screen shows ride information including speed, distance, battery range and navigation.
RIDECONTROL APPRideControl Ergo 2 wirelessly connects with the Giant E-bike App so your smartphone can function as a display for ride data and system updates.
DROPPER SUSPENSION SEATPOSTThe rider can change saddle height on the fly via a handlebar-mounted lever, offering greater control when you need to put down a food or adjust riding position for steep descents or climbs. The seatpost also has built-in suspension to help take the edge off bumpy roads.
TRAILER MOUNTIntegrated into the rear dropout, this mount allows the rider to attach a trailer without risk of damaging the frame or rear axle, making it easy to haul cargo for daily errands or multi-day treks.
HEAD TUBE CHARGE PORTNewly designed charge port has been relocated from the motor mount to the head tube. This higher placement offers easier access and convenience for charging the battery.
REAR RACKIntegrated rear cargo rack with MIK HD interface makes it quick and easy to customize carrying capacity and add other accessories such as bags or a child seat with a secure click mechanism. The rack has a maximum weight limit of 27kg.

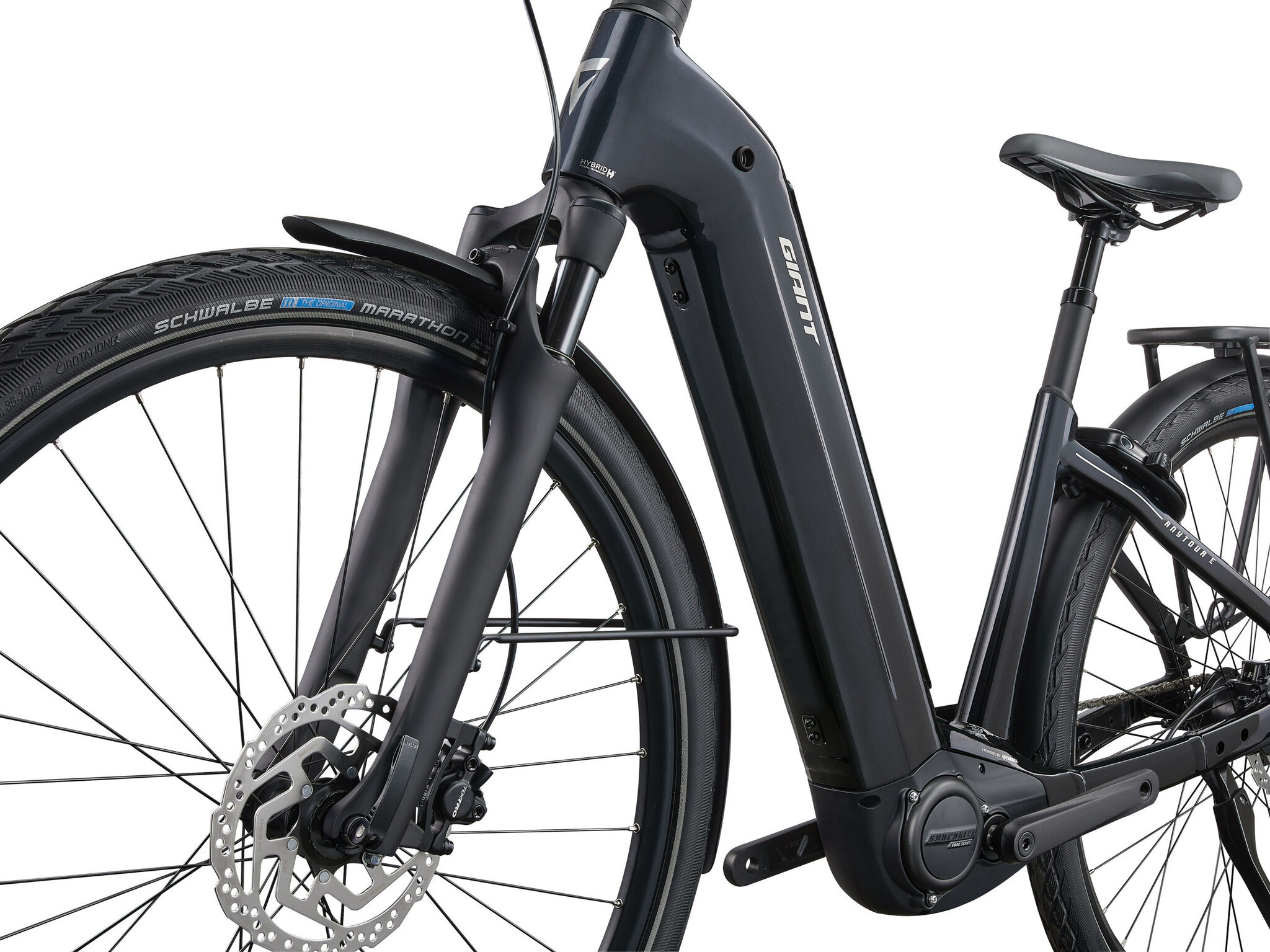

SMOOTH SUSPENSIONA 63mm suspension fork and a unique suspension dropper seatpost help absorb bumps and shocks to improve comfort and control on rough roads and paths.
CARBON BELT DRIVEPaired with an internally geared hub system, the belt is used instead of a traditional chain to deliver clean, low-maintenance performance. As a result, the drivetrain can handle rugged conditions including dirt, dust and mud with long-lasting dependability.
ALUXX SLThis state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. The frameset also features unique welding technologies for a high-performance ride quality.
SIZE GUIDE
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
| Size | Height |
| S | 5'4" - 5'8" |
| M | 5'7" - 5'10" |
| L | 5'9 - 6'1" |
| XL | 6'0" - 6'4" |
GEOMETRY
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (inch) | 16.1 | 18.1 | 18.9 | 21.7 |
| B | Seat Tube Angle | 72.5° | 72.5° | 72.0° | 72.0° |
| C | Top Tube Length (inch) | 23.2 | 23.2 | 24 | 24.8 |
| D | Head Tube Length (inch) | 5.1 | 5.1 | 6.7 | 6.7 |
| E | Head Tube Angle | 69.5° | 69.5° | 69.5° | 69.5° |
| F | Fork Rake (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | Trail (inch) | 3.5 | 3.6 | 3.6 | 3.6 |
| H | Wheelbase (inch) | 43.9 | 43.9 | 44.5 | 45.3 |
| I | Chain Stay Length (inch) | 18.5 | 18.5 | 18.5 | 18.5 |
| J | Bottom Bracket Drop (inch) | 2.8 | 2.8 | 2.8 | 2.8 |
| K | Stack (inch) | 26.1 | 26.1 | 26.1 | 26.1 |
| L | Reach (inch) | 15.4 | 15.4 | 15.5 | 16.3 |
| M | Stand Over Height (inch) | 23.1 | 23.1 | 21.3 | 20.7 |
| N | Handlebar Width (inch) | 26 | 26 | 26 | 26 |
| O | Stem Length (inch) | 3.5 | 3.5 | 4.3 | 4.3 |
| P | Crank Length (inch) | 6.7 | 6.7 | 6.7 | 6.7 |
| Q | Wheel Size | 700C | 700C | 700C | 700C |
SPECIFICATIONS
| Motor |
Giant SyncDrive Core2, 55Nm, Powered by Yamaha, PedalPlus 6-sensor technology |
| Controller |
Giant RideControl Ergo 2 remote, Smart Assist automatic mode, 5 support levels, USB-C (10W) |
| Display |
Giant RideDash EVO, high-angle visibility, 3" full color LCD display, on-board navigation |
| Battery |
Giant EnergyPak 500Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production |
| Charger |
EnergyPak 4A smart charger compact, 60% in 2:00h |
| Sizes |
S, M, L, XL
|
| Colours | Cold Iron/Black, Sea Sparkle/Black |
| Frame | ALUXX SL-grade aluminum, integrated battery, M10 trailer mount, KSA40 kickstand mount |
| Fork | SR Suntour NEX E25 700C Coil 63mm travel |
| Shock | n/a |
| Handlebar | Giant Contour GT, cable integrated, 31.8mm |
| Grips | Giant Comfort Ergo Microtech Plus Lock-on |
| Stem | Giant Contour, EVO display integrated, adjustable |
| Seatpost | Suspension 2-bolt micro-adjustable, 30.9mm |
| Saddle |
Selle Royal Look-In gel
|
| Pedals | anti-slip |
| Shifters | Shimano Nexus 7sp REVOSHIFT |
| Brakes | Tektro HD-M275, hydraulic disc, 180mm [F], 160mm [R] |
| Brake Levers | Tektro HD-M275 |
| Cassette | 18T |
| Chain | KMC Z1e HX, e-bike optimized |
| Crankset |
Aluminum, 38T
|
| Bottom Bracket | n/a |
| Rims | Giant double wall, alloy |
| Hubs | Shimano [F], T200 9mm QR, [R] Shimano Nexus 7 |
| Spokes |
Stainless
|
| Tires | Schwalbe Marathon 622x50 Green Guard |
| Extras | Alloy fenders, KSA40 direct mount kickstand |

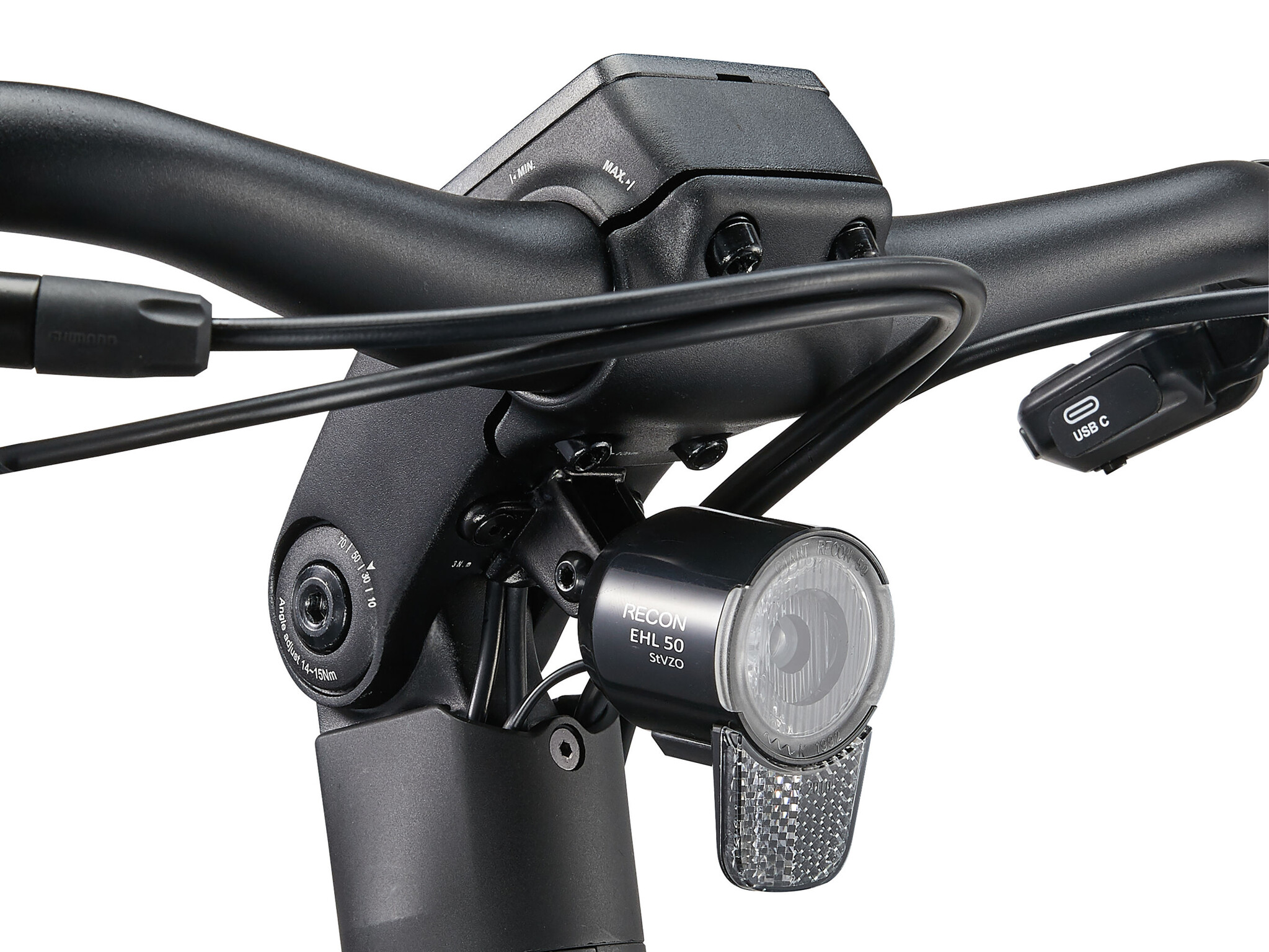

| Lighting | Giant Recon HL50, 50 lux [F]AXA Juno 6-12V E-bike tail light [R] |
| Lock |
ABUS Xplus Battery Lock / Abus 5755L XPLUS NR frame/rear wheel lock |
| Carrier | MIK rack. System bag & basket compatible |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
