| Article number: | 2202104125 |
| Availability: | In stock |
DESCRIPTION

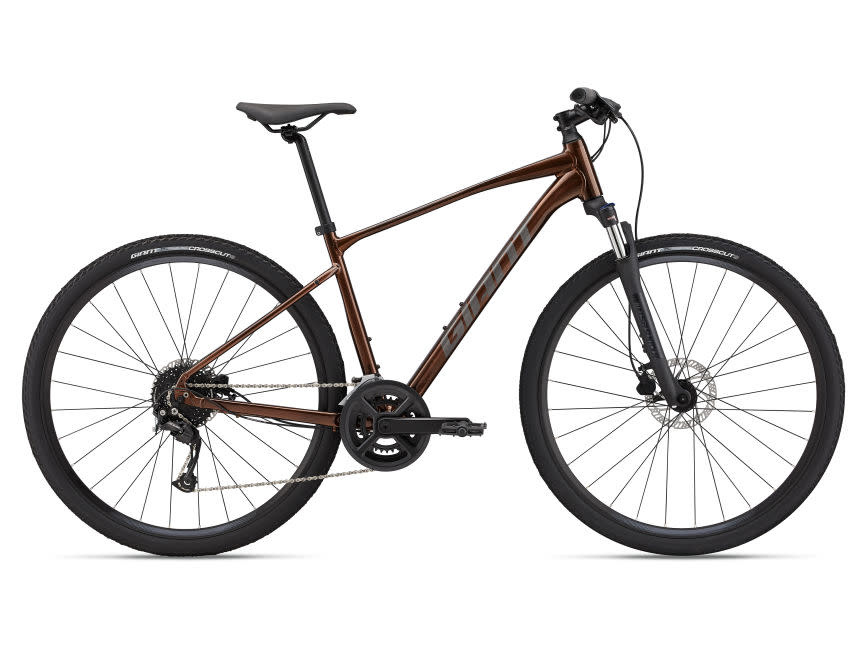

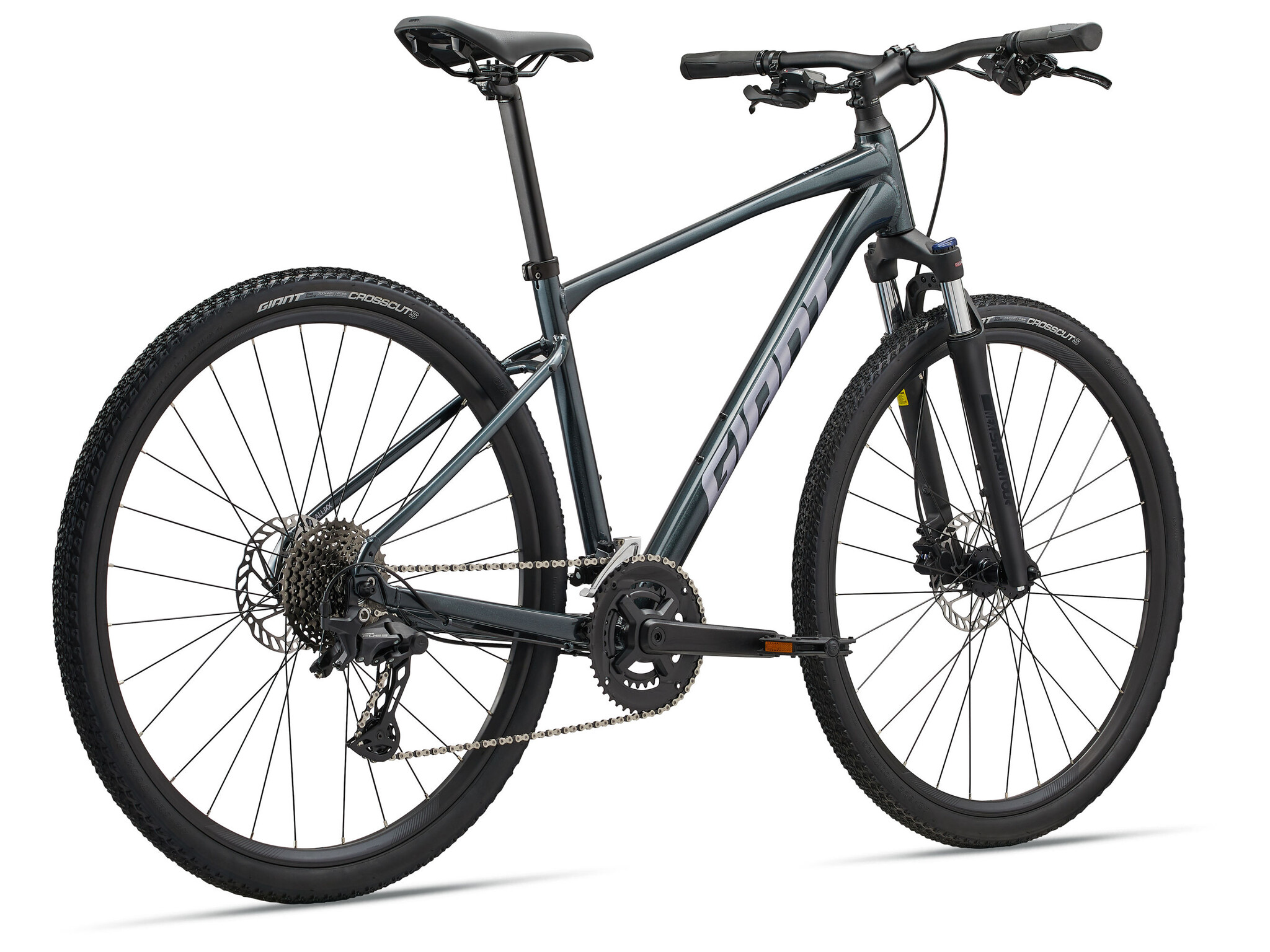

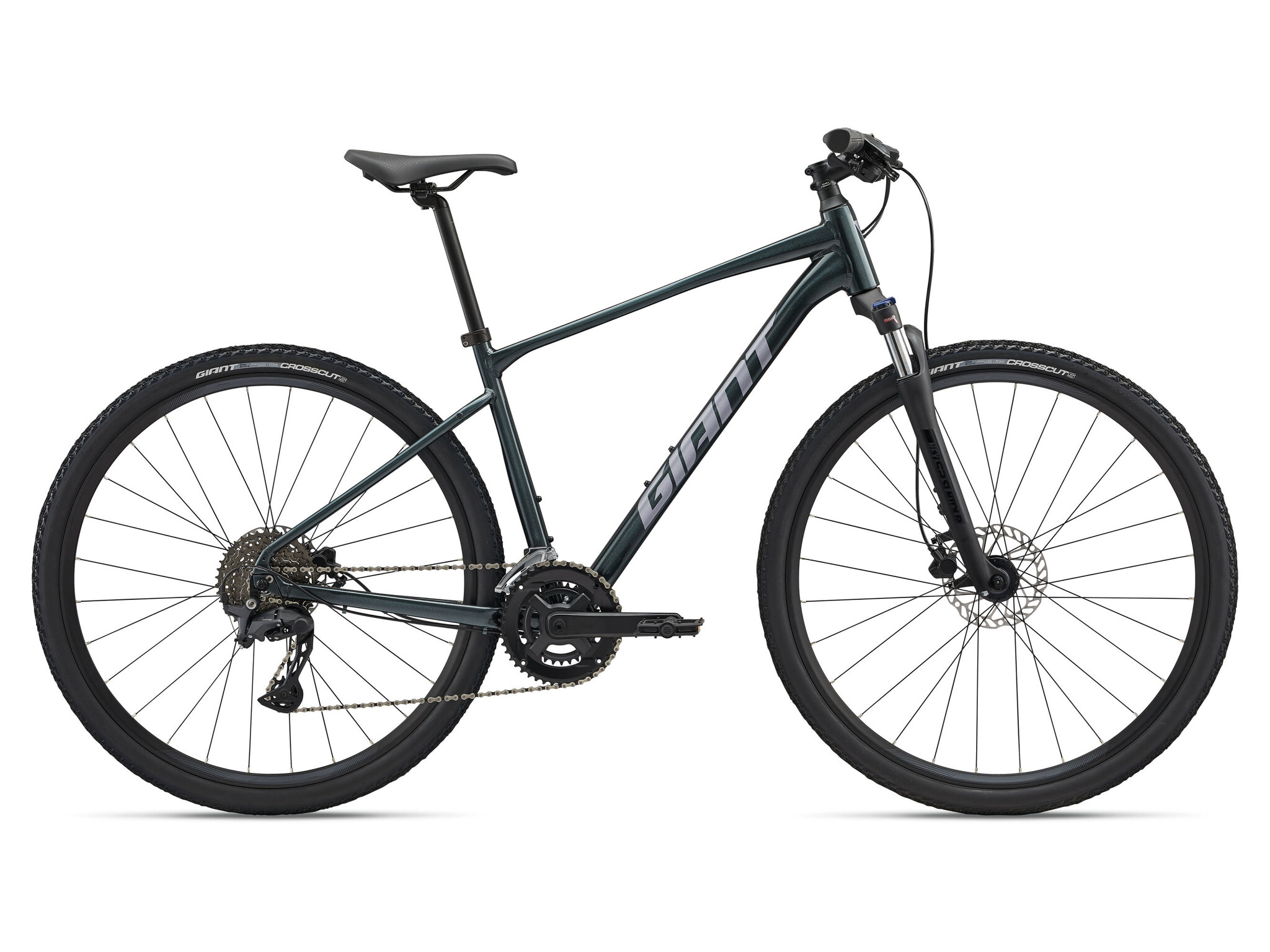

Follow your own route, wherever it may lead. With stable flat bar positioning and disc brakes, Roam Disc handles all types of terrain and unlimited adventures.
KEY PERFORMANCE FACTORS
Agility and controlUpdated flat-bar frame geometry puts the rider in a position that balances efficiency with stability, and disc brakes give you added control on rugged roads or dirt. |
Smooth-riding comfortThe D-Fuse seatpost and suspension fork absorb road shocks and vibrations, and EasyRide Tubeless tires let you run lower pressure for a smoother ride quality and a reduced risk of flats. |
Integrated rack mountsCompatible with rear racks, allowing easy cargo capacity for daily trips or longer treks. |
FEATURES
 |
 |
|||
ALUXX Aluminum TechnologyThis Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles. |
|

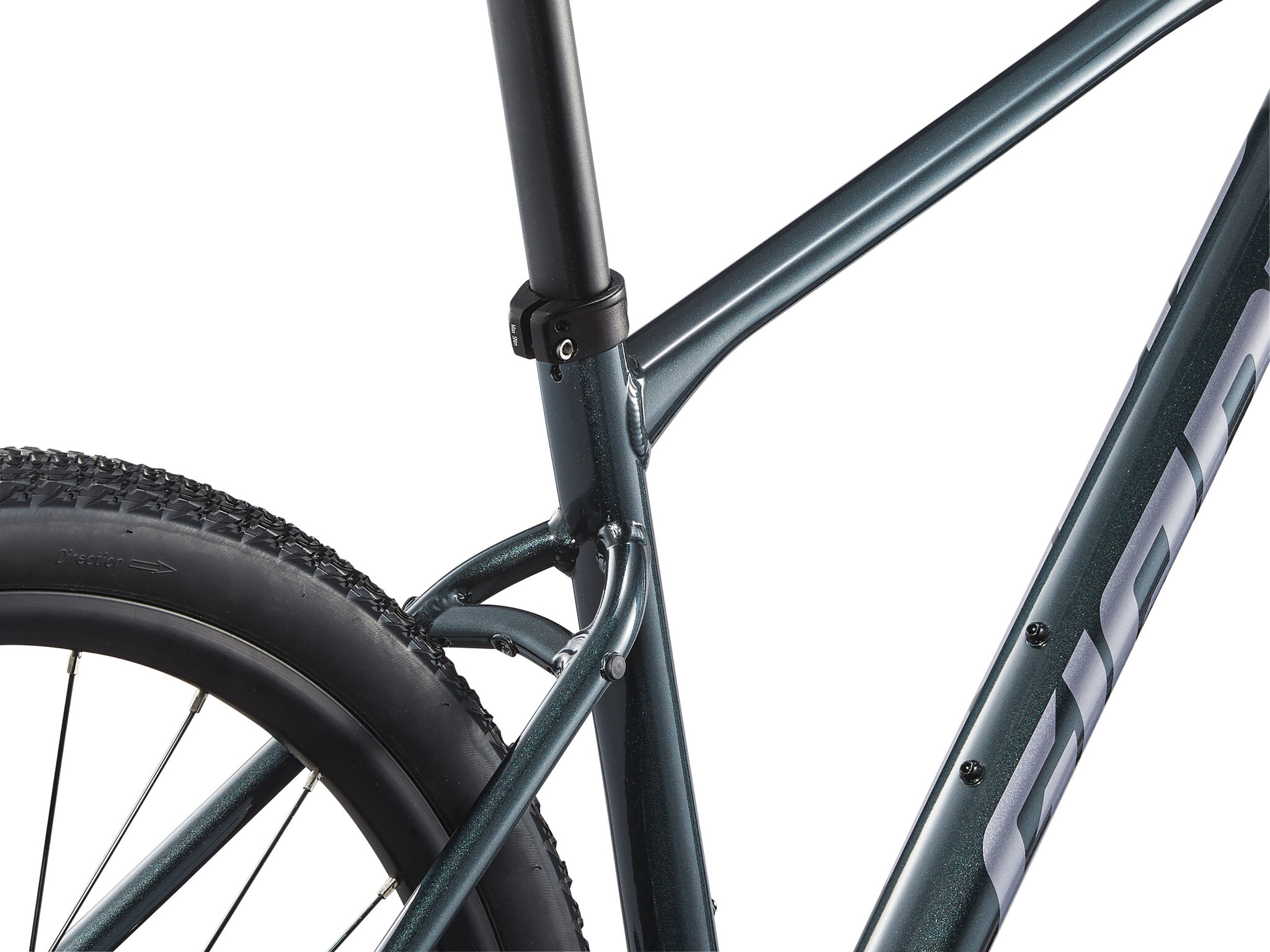

D-Fuse SeatpostThe proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride. |
|
|
SIZE GUIDE
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
| Sizes | Height |
| S | 5'3" - 5'7" |
| M | 5'7" - 5'11" |
| L | 5'11" - 6'3" |
| XL | 6'3" - 6'7" |
GEOMETRY
| S |
M |
L |
XL |
||
| A | Seat Tube Length (inch) | 16.5 | 18.1 | 19.7 | 21.7 |
| B | Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (inch) | 23.2 | 23.6 | 24 | 24.6 |
| D | Head Tube Length (inch) | 4.5 | 5.1 | 5.7 | 6.3 |
| E | Head Tube Angle | 70.5° | 70.5° | 70.5° | 70.5° |
| F | Fork Rake (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | Trail (inch) | 3.3 | 3.3 | 3.3 | 3.3 |
| H | Wheelbase (inch) | 42.8 | 43.2 | 43.7 | 44.3 |
| I | Chain Stay Length (inch) | 17.7 | 17.7 | 17.7 | 17.7 |
| J | Bottom Bracket Drop (inch) | 2.4 | 2.4 | 2.4 | 2.4 |
| K | Stack (inch) | 23.9 | 24.4 | 25 | 25.5 |
| L | Reach (inch) | 15.9 | 16.1 | 16.4 | 16.8 |
| M | Stand Over Height (inch) | 28.5 | 29.8 | 31 | 32.6 |
| N | Handlebar Width (inch) | 25.2 | 26.8 | 26.8 | 26.8 |
| O | Stem Length (inch) | 2.8 | 3.1 | 3.5 | 3.9 |
| P | Crank Length (inch) | 6.7 | 6.7 | 6.9 | 6.9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C |
SPECIFICATIONS
| Sizes | S, M, L, XL |
| Colours | Black, Hematite |
| Frame | ALUXX-Grade Aluminum, disc |

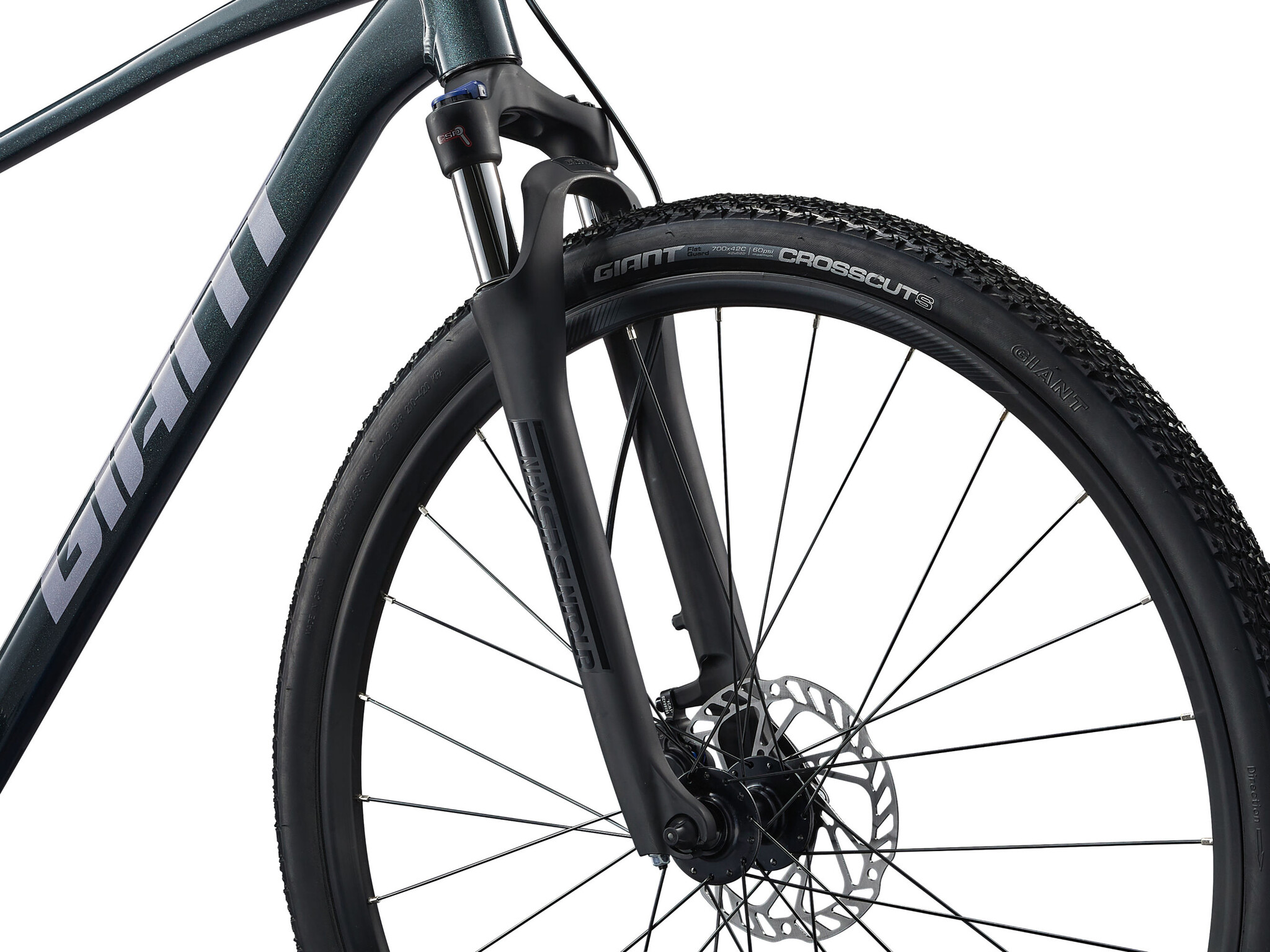

| Fork | SR Suntour NEX HLO 700C, 63mm |
| Shock | N/A |
| Handlebar | Giant Sport XC, 31.8mm S:64cm, M:68cm, L:68cm, XL:68cm |
| Grips | Giant Connect Ergo |
| Stem | Giant Sport, 7-degree S:60mm, M:70mm, L:80mm, XL:90mm |
| Seatpost | Giant D-Fuse, alloy, 350mm |
| Saddle | Giant Sport |
| Pedals | platform |
| Shifters | Shimano Altus, 2x9 |
| Front Derailleur | Shimano Acera |
| Rear Derailleur | Shimano Alivio |

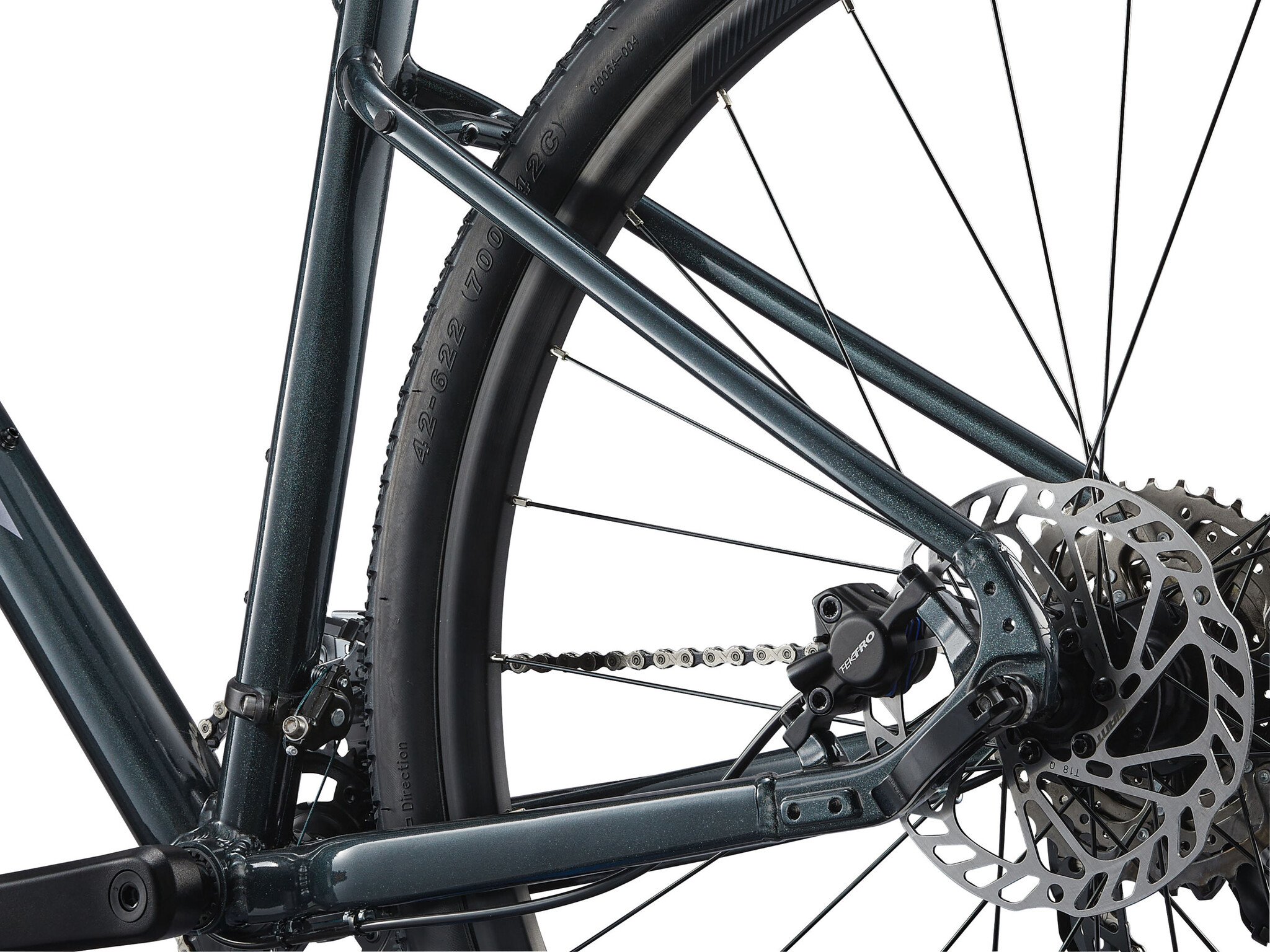

| Brakes | Tektro TKD-143 hydraulic, [F]160mm, [R]160mm rotors |
| Brake Levers | Tektro TKD-143 |
| Cassette | Shimano HG200, 11x36 |
| Chain | KMC X9 with Missing Link |

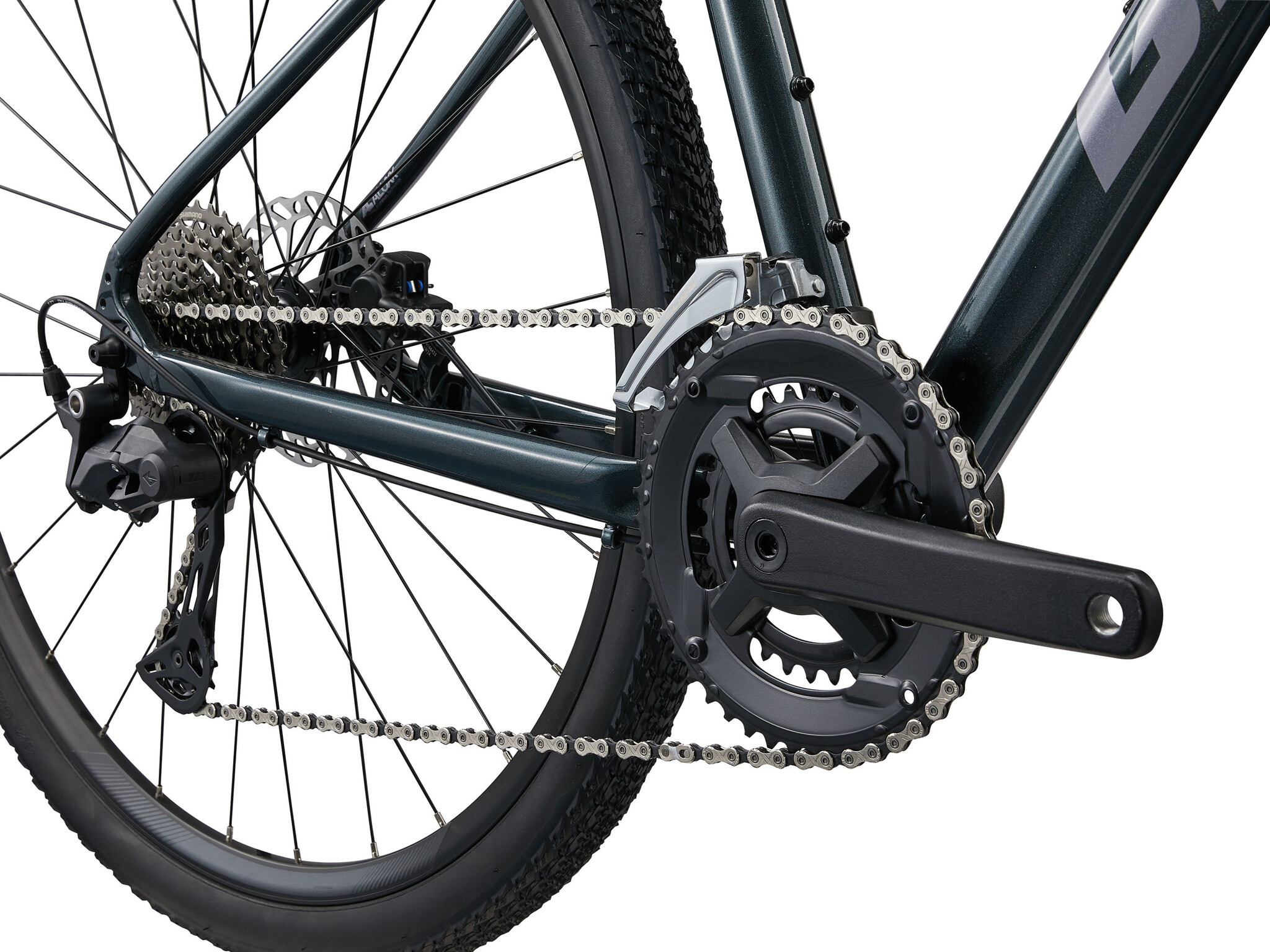

| Crankset | forged alloy, 30/46 S:170mm, M:170mm, L:175mm, XL:175mm |
| Bottom Bracket | threaded |
| Rims | Giant double wall aluminum |
| Hubs | alloy, 28h |
| Spokes | stainless, 14g |
| Tires | Giant CrossCut, anti-puncture, 700x42c |
| Extras | 53mm max tire size |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
