| Article number: | 1094011193-BLK-XS |
| Availability: | In stock |
DESCRIPTION
The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models
KEY PERFORMANCE FACTORS
Modern MTB DesignTapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models |
|
Off-Road ControlNew geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain. |
|
Light and DurableAll-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain. |
HIGHLIGHTS
The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance.
INTERNAL CABLE ROUTING
Derailleur, brake and dropper post cables are routed internally through integrated ports. This helps saves weight and creates a cleaner look and performance.
DROPPER POST COMPATIBLE
30.9mm seattube diameter and clean internal cable routing allows for easy dropper seatpost upgrade.
ALIGNED SEATSTAY JUNCTION
The rear triangle is designed with seatstays that join the seat tube at the same point as the top tube, forming a unified connection. This clever alignment helps improve rear end stiffness while reducing overall frame weight, leading to a more efficient, lighter ride.
1X AND 2X COMPATIBLE
Frameset is designed to work with either a single chainring or double chainring crankset. For 2x setups, either a side-swing or down-swing front derailleur can be used.
INTEGRATED MOUNTS
Mounts on the seatstays and chainstays make it easy to accessorize with racks, fenders or a rear kickstand.
TAPERED HEAD TUBE
The 1.5-inch tapered head tube provides ride stability, especially over rough terrain and tight trail conditions.
THRU-AXLE WITH UDH HANGERLock in that rock-solid feel with the durable 12x142mm thru-axle, paired with a UDH (Universal Derailleur Hanger) for smooth shifting and added durability.
CHAINSTAY PROTECTIONAn all-new chainstay protector features an integrated design with fixed cable routing, absorbing chain slap to reduce noise and protect your bike’s frame and finish from damage when encountering rough terrain
FEATURES
 |
||
ALUXX Aluminum TechnologyThis Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles. |
SIZING GUIDE
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
| Sizes | Height |
| XS (27.5") | 5'1" - 5'5" |
| S (27.5") | 5'4" - 5'8" |
| S (29") | 5'4' - 5'8" |
| M (29") | 5'7" - 5'10" |
| L (29") | 5'9" - 6'1" |
| XL (29") | 6'0" - 6'4" |
GEOMETRY
| XS (27.5") | S (27.5") | S (29") | M (29") | L (29") | XL (29") | ||
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (inch) | 13.6 | 14.8 | 15 | 16.5 | 17.7 | 18.9 |
| A1 | Seat Post Insertion Depth (inch) | 12 | 13.3 | 13.4 | 7.9 | 9.3 | 11.5 |
| B | Seat Tube Angle | 74.0° | 74.0° | 74.5° | 74.5° | 74.5° | 74.5° |
| C | Top Tube Length (inch) | 21.3 | 22.1 | 22.9 | 23.8 | 24.8 | 25.7 |
| D | Head Tube Length (inch) | 3.5 | 3.5 | 3.7 | 4.1 | 4.9 | 5.5 |
| E | Head Tube Angle | 67.0° | 67.0° | 67.5° | 67.5° | 67.5° | 67.5° |
| F | Fork Rake (inch) | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| G | Trail (inch) | 4.1 | 4.1 | 4.3 | 4.3 | 4.3 | 4.3 |
| H | Wheelbase (inch) | 42.7 | 43.5 | 44.8 | 45.8 | 46.9 | 47.9 |
| I | Chain Stay Length (inch) | 17.3 | 17.3 | 17.9 | 17.9 | 17.9 | 17.9 |
| J | Bottom Bracket Drop (inch) | 1.8 | 1.8 | 2.2 | 2.2 | 2.2 | 2.2 |
| K | Stack (inch) | 21.6 | 21.6 | 23.5 | 23.9 | 24.6 | 25.2 |
| L | Reach (inch) | 15.2 | 15.9 | 16.3 | 17.2 | 18 | 18.7 |
| M | Stand Over Height (inch) | 26.9 | 26.9 | 28.1 | 27.9 | 27.9 | 28 |
| N | Handlebar Width (inch) | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| O | Stem Length (inch) | 1.6 | 2 | 2 | 2.4 | 2.8 | 3.1 |
| P | Crank Length (inch) | 6.5 | 6.5 | 6.7 | 6.7 | 6.7 | 6.9 |
| Q | Wheel Size | 27.5" | 27.5" | 29" | 29" | 29" | 29" |
SPECIFICATIONS
| Sizes | 27.5: XS, S, 29: S, M, L, XL, XXL |

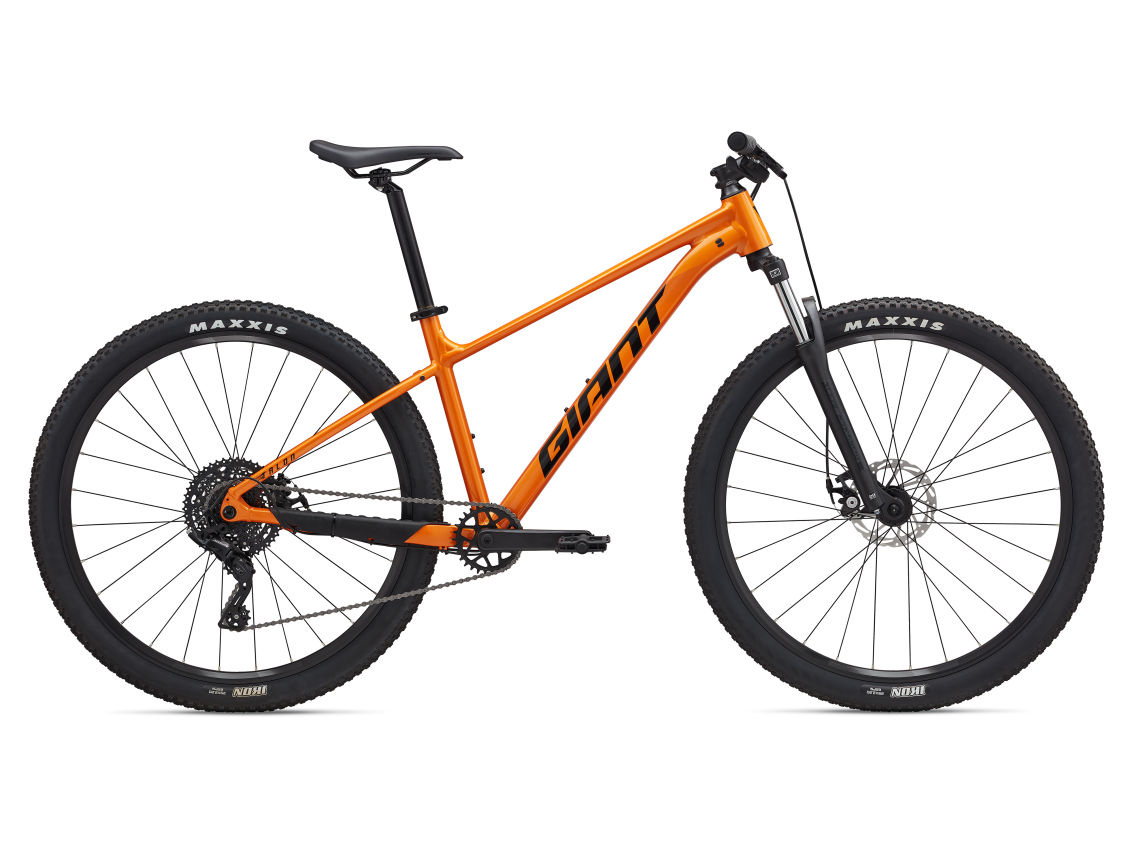

| Colours | Radiant Orange, Black |
| Frame | ALUXX-grade aluminum, disc |
|
Fork
|
SR Suntour XCE, QR, steel steerer, XS, S: 80mm travel (27.5), S, M, L, XL, XXL:100mm travel (29) |
| Shock | N/A |
| Handlebar | Giant Connect Trail, 31.8mm |
| Grips | Giant Sole-O |
| Stem | Giant Sport, 7-degree |
| Seatpost | Giant Sport, 30.9 |
| Saddle | Giant ErgoContact Trail |
| Pedals | platform |
| Shifters | microSHIFT Acolyte, 1x8 |
| Front Derailleur | N/A |
| Rear Derailleur | microSHIFT Acolyte, RD-M5185M with clutch |
| Brakes | Tektro TKB-172, mechanical, [F]160mm, [R]160mm rotors |
| Brake Levers | Tektro RS360A |
| Cassette | microSHIFT Acolyte, 8-speed, 12x46 |
| Chain | KMC 8.1 |
| Crankset | ProWheel, [27.5] 32t, [29] 30t, 52.5mm chainline 32t |
| Bottom Bracket | cartridge |
| Rims | Giant GX03V 27.5 or 29, alloy, double wall, 21mm IW |
| Hubs | alloy, sealed bearing, [F] 9mm QR, [R] 12x142 thru-axle |
| Spokes | stainless |
| Tires | Maxxis Ikon 27.5x2.2 or Maxxis Ikon 29x2.2, 60 TPI, wire bead |
| Extras |
2.4" max tire size, max chainring 32t
|
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
