| Article number: | 2303422157-DEN-L |
| Availability: | In stock |
DESCRIPTION

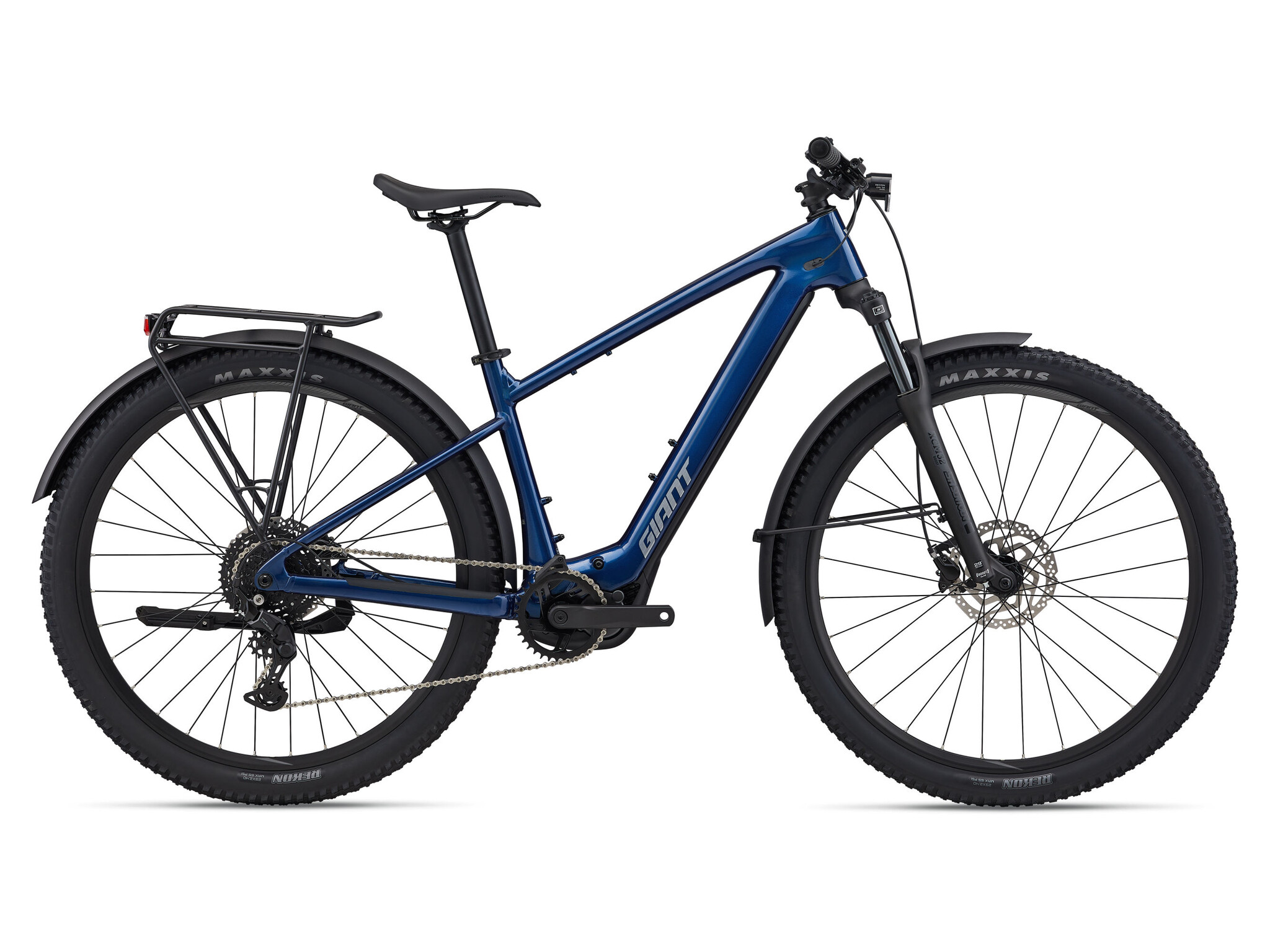

The trail is calling, and here’s your answer. This balanced, smooth-riding E-bike gives you a smooth boost of power and total control, so you can have more fun and expand your off-road riding capabilities.
KEY PERFORMANCE FACTORS
Smooth power deliveryThe SyncDrive Core motor delivers smooth, instantaneous power to conquer all kinds of terrain and have more fun. |
Balanced, confident handlingLightweight aluminum frame with trail-friendly geometry, 100mm of front suspension travel, and stable 29-inch wheels puts you in control on off-road terrain. |
Long-lasting batterySide Release EnergyPak with 500Wh of capacity is easy to charge with our 4A smart charger. |
RANGE
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
Energypak 500 / Syncdrive Core
- Extreme: 55 km
- Good: 100 km
- Ideal: 170 km
FEATURES
 |
 |
 |
||
ALUXX SL Aluminum TechnologyThis High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality. |
|
E+ SystemE+ System combines electric power with human power to produce a smart, natural and powerful E-bike riding experience. It’s an integrated group of technologies that includes our RideControl control units, EnergyPak battery systems and SyncDrive motors. |
|
Tubeless SystemFewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits. |
 |
 |
 |
||
Smart AssistAll SyncDrive motors have Smart Assist technology, which adjusts the support to match the rider’s needs. By using information from multiple sensors, both rider input and terrain feedback are used to determine the optimal amount of pedaling assistance. SyncDrive is the only e-bike system that utilizes both rider input and terrain feedback. It gives you a smooth, natural riding experience with ample power when you need it, while also conserving power when you don’t need as much. |
|

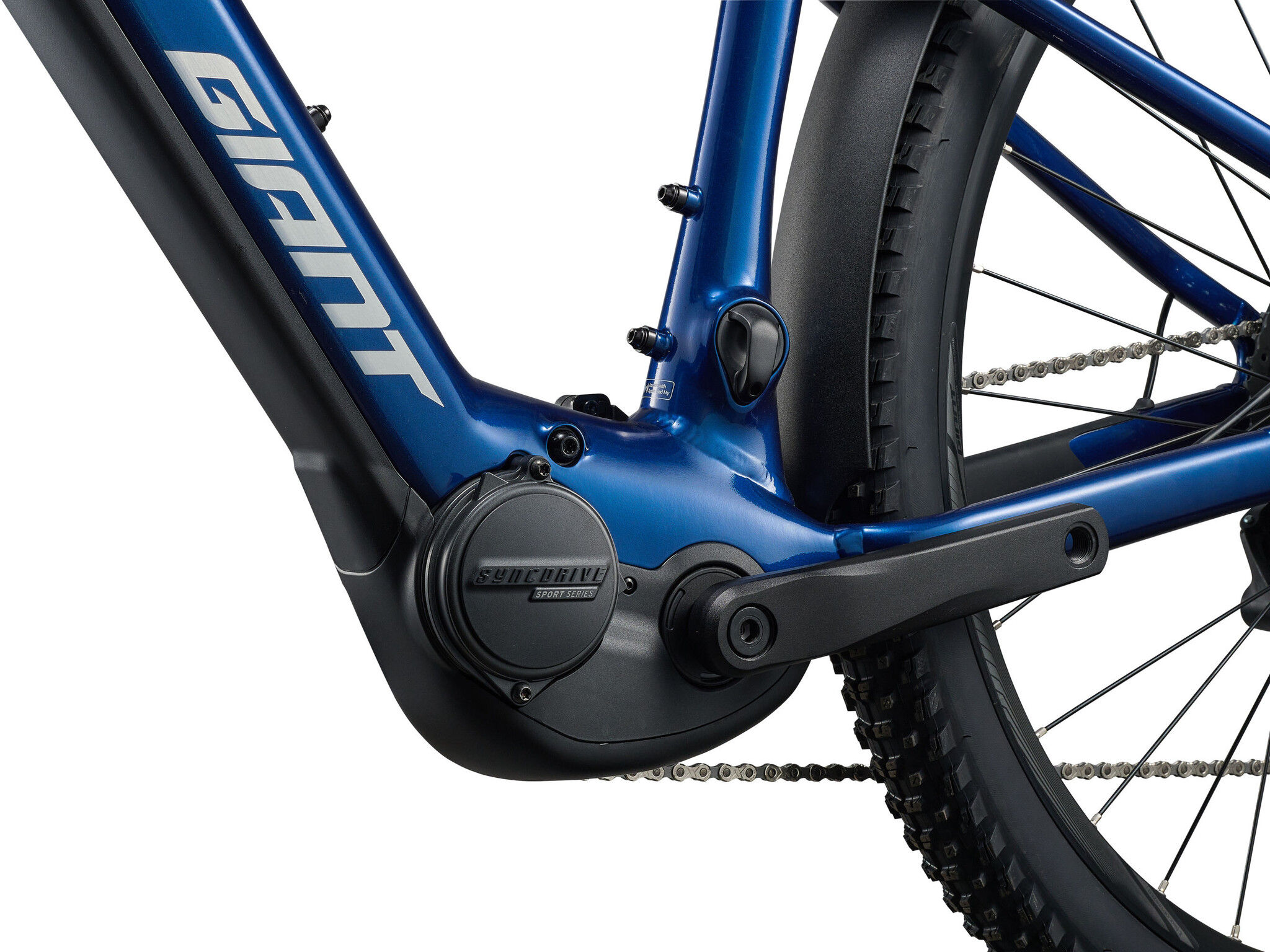

Syncdrive CoreSyncDrive Core is a compact and lightweight motor, making it ideal for E-bikes used for daily transportation or recreation. It has Smart Assist technology, featuring six sensors including a slope detection sensor and an accelerometer. These sensors allow the motor to produce power based on rider input and the terrain, so there is no need to select a certain assist mode. You can simply ride the same way you normally would, but |
|
RideControl DashThis two-in-one unit features buttons to control support modes plus an integrated color display. You can check range, battery level and support mode, along with standard cycling data such as speed and distance without having to another screen to the E-bike. It also has an ANT+ connection so you can connect a heart rate monitor and other fitness devices. |
SIZE GUIDE
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
| Sizes | Height |
| S | 5'4" - 5'8" |
| M | 5'7" - 5'10" |
| L | 5'9 - 6'1" |
| XL | 6'0" - 6'4" |
GEOMETRY
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (inch) | 15.9 | 17.9 | 19.9 | 21.1 |
| B | Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (inch) | 22.6 | 23.6 | 24.6 | 25.6 |
| D | Head Tube Length (inch) | 4.1 | 4.5 | 4.9 | 5.5 |
| E | Head Tube Angle | 68.0° | 68.0° | 68.0° | 68.0° |
| F | Fork Rake (inch) | 1.8 | 1.8 | 1.8 | 1.8 |
| G | Trail (inch) | 3.9 | 3.9 | 3.9 | 3.9 |
| H | Wheelbase (inch) | 44.9 | 45.9 | 47 | 48 |
| I | Chain Stay Length (inch) | 18.7 | 18.7 | 18.7 | 18.7 |
| J | Bottom Bracket Drop (inch) | 1.8 | 1.8 | 1.8 | 1.8 |
| K | Stack (inch) | 24.6 | 25 | 25.3 | 25.9 |
| L | Reach (inch) | 15.1 | 16 | 16.9 | 17.7 |
| M | Stand Over Height (inch) | 28.5 | 29.6 | 31 | 31.8 |
| N | Handlebar Width (inch) | 27.2 | 29.5 | 29.5 | 30.7 |
| O | Stem Length (inch) | 2 | 2.4 | 2.4 | 2.8 |
| P | Crank Length (inch) | 6.3 | 6.5 | 6.7 | 6.7 |
| Q | Wheel Size | 29" | 29" | 29" | 29" |
SPECIFICATIONS
| Motor | Giant SyncDrive Core, 55Nm, PedalPlus 6-sensor technology |
| Controller | Giant RideControl Dash, Smart Assist automatic mode, 5 support levels, USB-C (10W) |
| Display | Giant RideControl Dash, high-angle visibility, full color LCD display |
| Battery | Giant EnergyPak 500Wh, CO2 Neutral production |
| Charger | Giant EnergyPak 4A fast charger, 60% charge in 2:00h |
| Connectivity | Giant RideControl App enabled ANT+ wireless display signal with e-bike profile |
| Sizes | S, M, L, XL, XXL |
| Colours | Aged Denim |

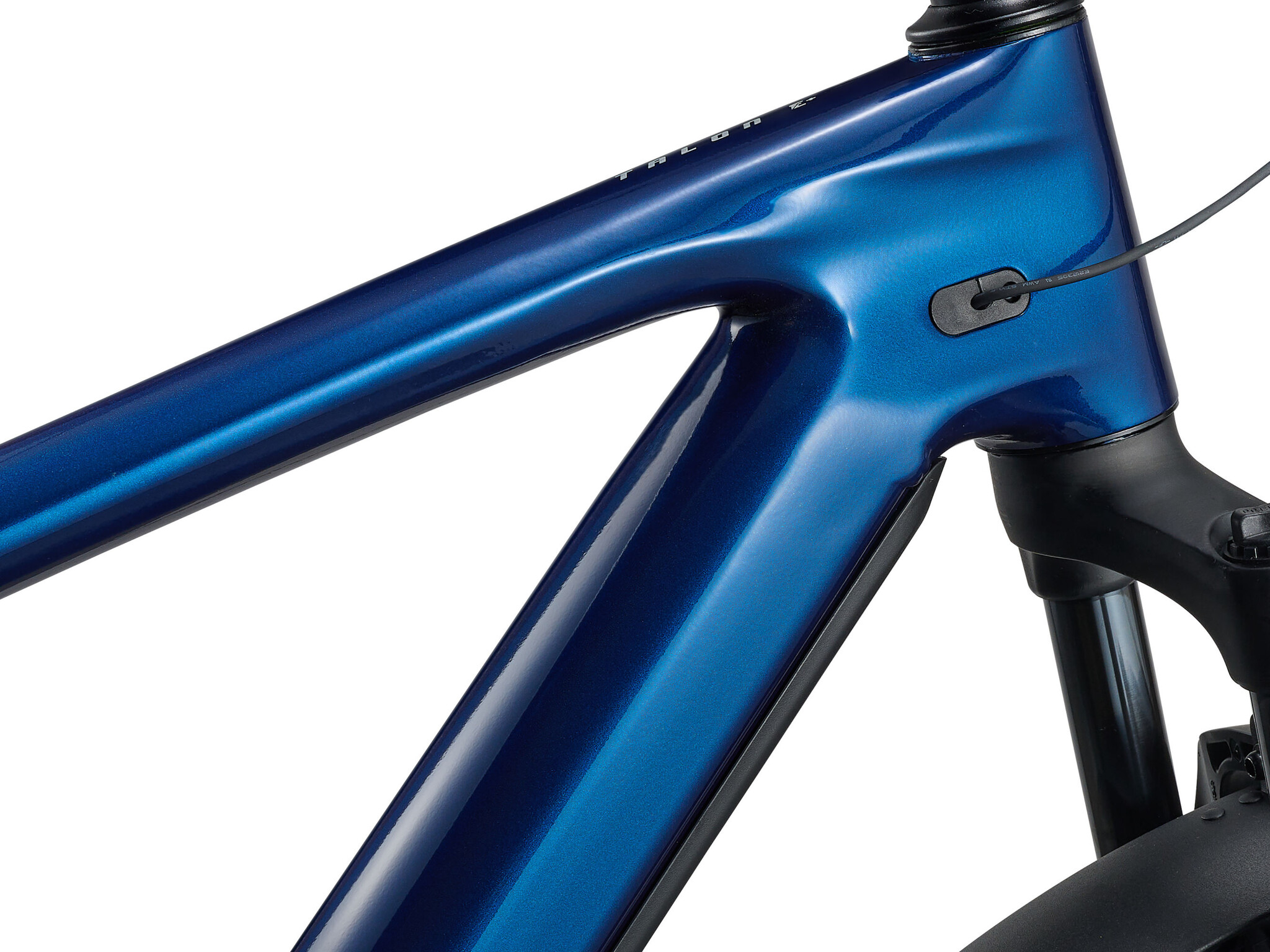

| Frame | ALUXX aluminum, Overdrive 1½ - 1⅛" head tube, integrated KSA18 kickstand mount |

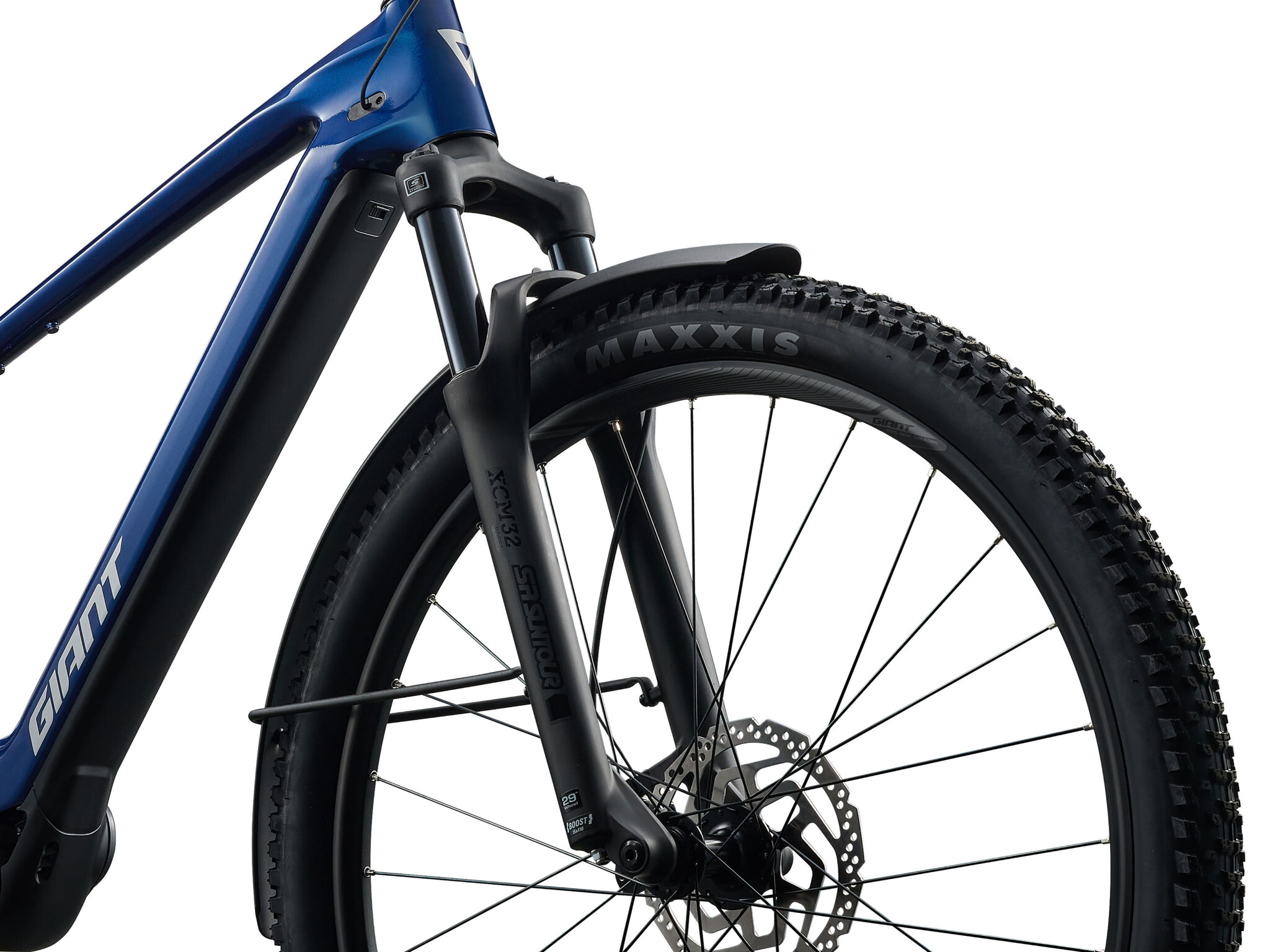

| Fork | SR Suntour XCM 32 ATB Coil NLO, 29" 100mm travel, Tapered 1½ - 1⅛" steerer |
| Shock | n/a |

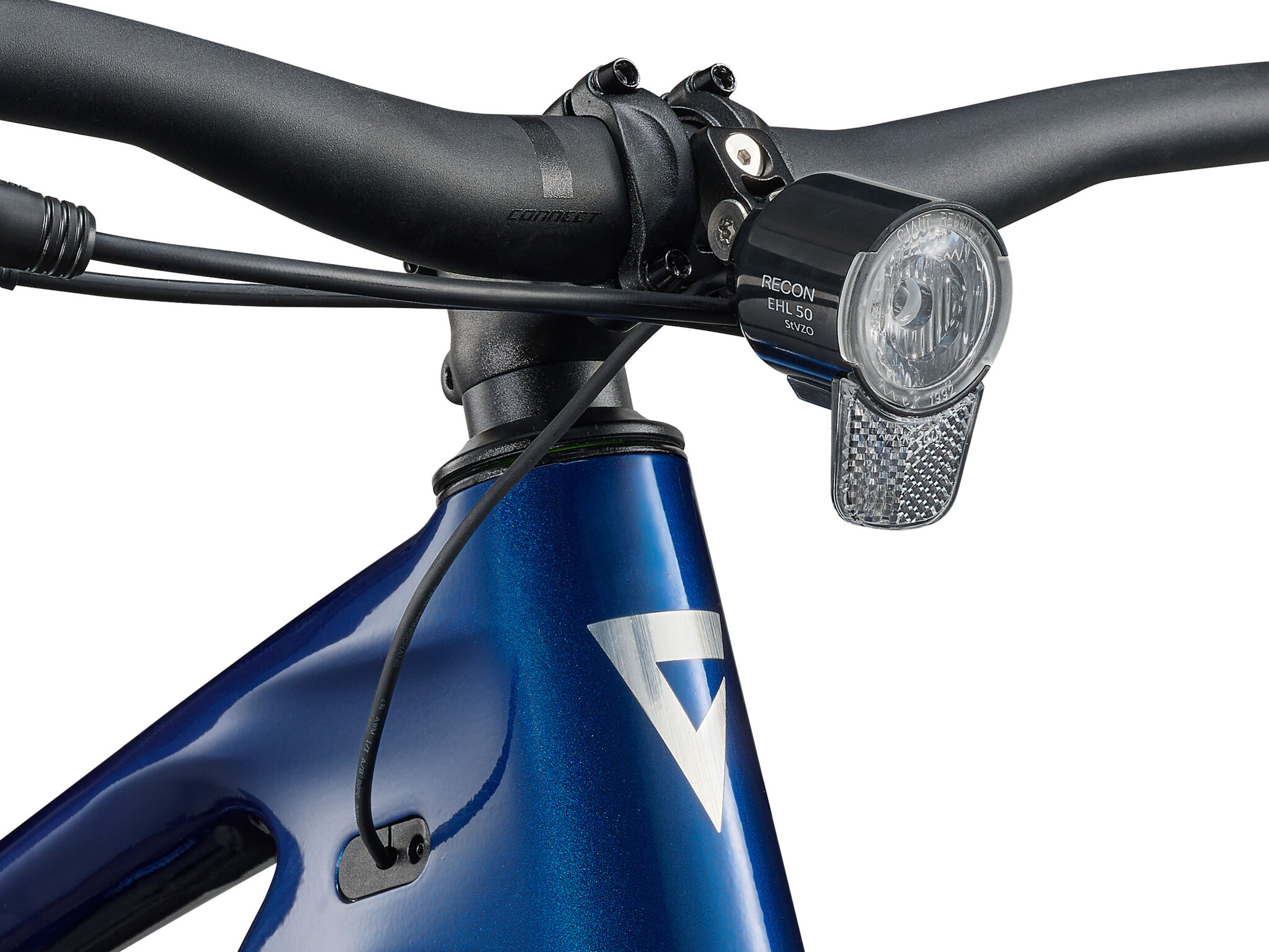

| Handlebar | Giant Connect TR Riser 31.8x720~780mm (S: 720mm, M:750mm, L/XL/XXL: 780mm) |
| Grips | Giant Sole-O Grip |
| Stem | Giant Contact |
| Seatpost | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle | Giant Sport |
| Pedals | Aluminum Platform |
| Shifters | Shimano Altus |
| Front Derailleur | n/a |

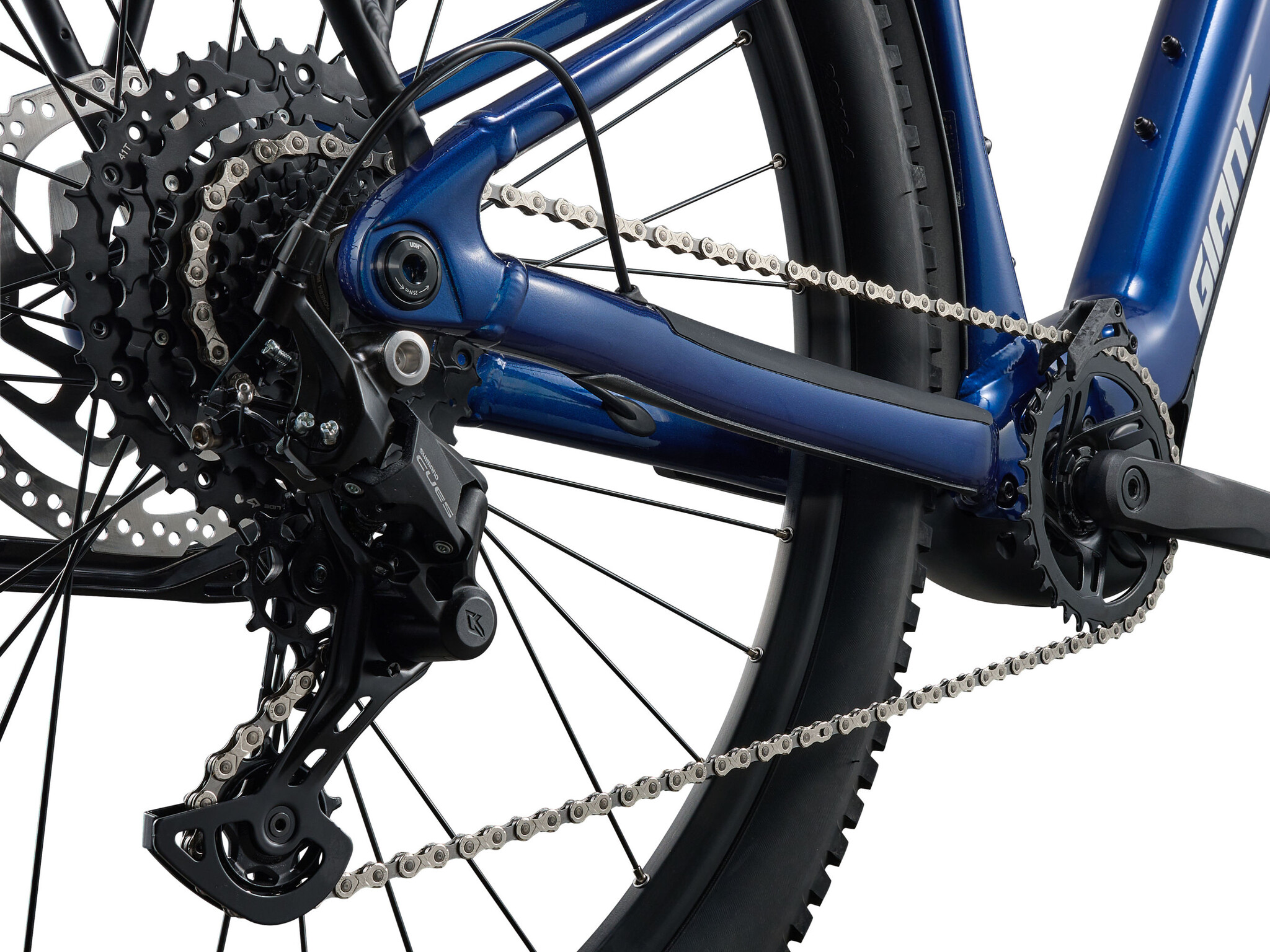

| Rear Derailleur | Shimano Alivio, 9-speed |
| Brakes | Tektro HD-M285, hydraulic disc, 180mm [F],160mm [R] |
| Brake Levers |
Tektro HD-M285
|
| Cassette | Shimano CS-HG200, 11-36T, 9-speed |
| Chain | KMC e.9 Sport, e-bike optimized |
| Crankset | FSA Comet E-Bike crank arm set FSA MegaTooth Direct-mount 1X steel 36T |
| Bottom Bracket | n/a |
| Rims | Giant GX03V, 29er, Alluminum |
| Hubs | Giant eTracker Sport, [F] 9mm QR [R] 135mm QR |
| Spokes | Stainless steel |
| Tires | Maxxis Rekon Race 29 x 2.25, Wire Bead, Dual Compound 60TPI |

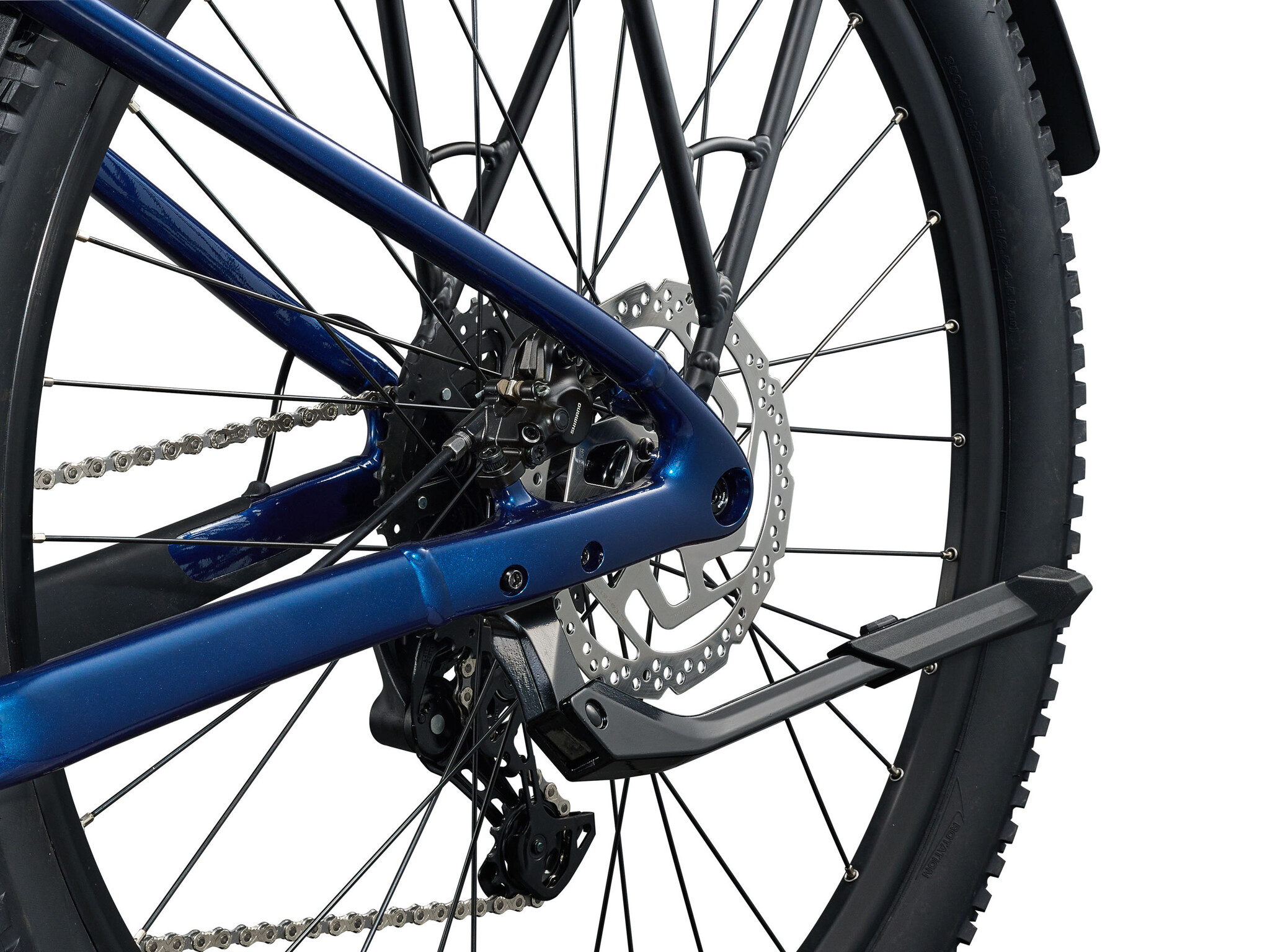

| Extras | KSA18 direct mount kickstand |
| Lighting | Herrmans H-BLACK MR4Axa BlueLine Steady E6 rear |

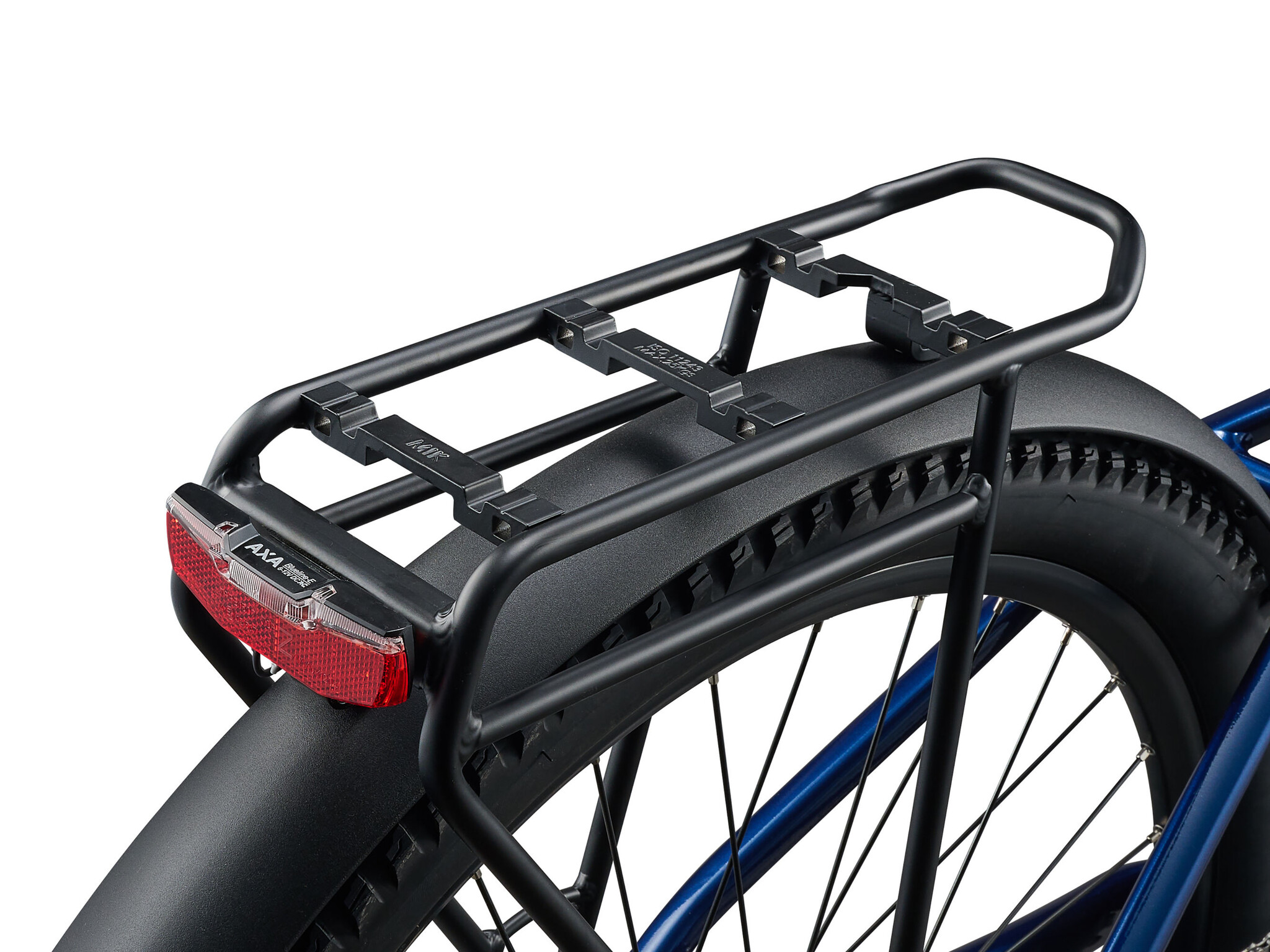

| Carrier | Giant Rack-It MIK |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
