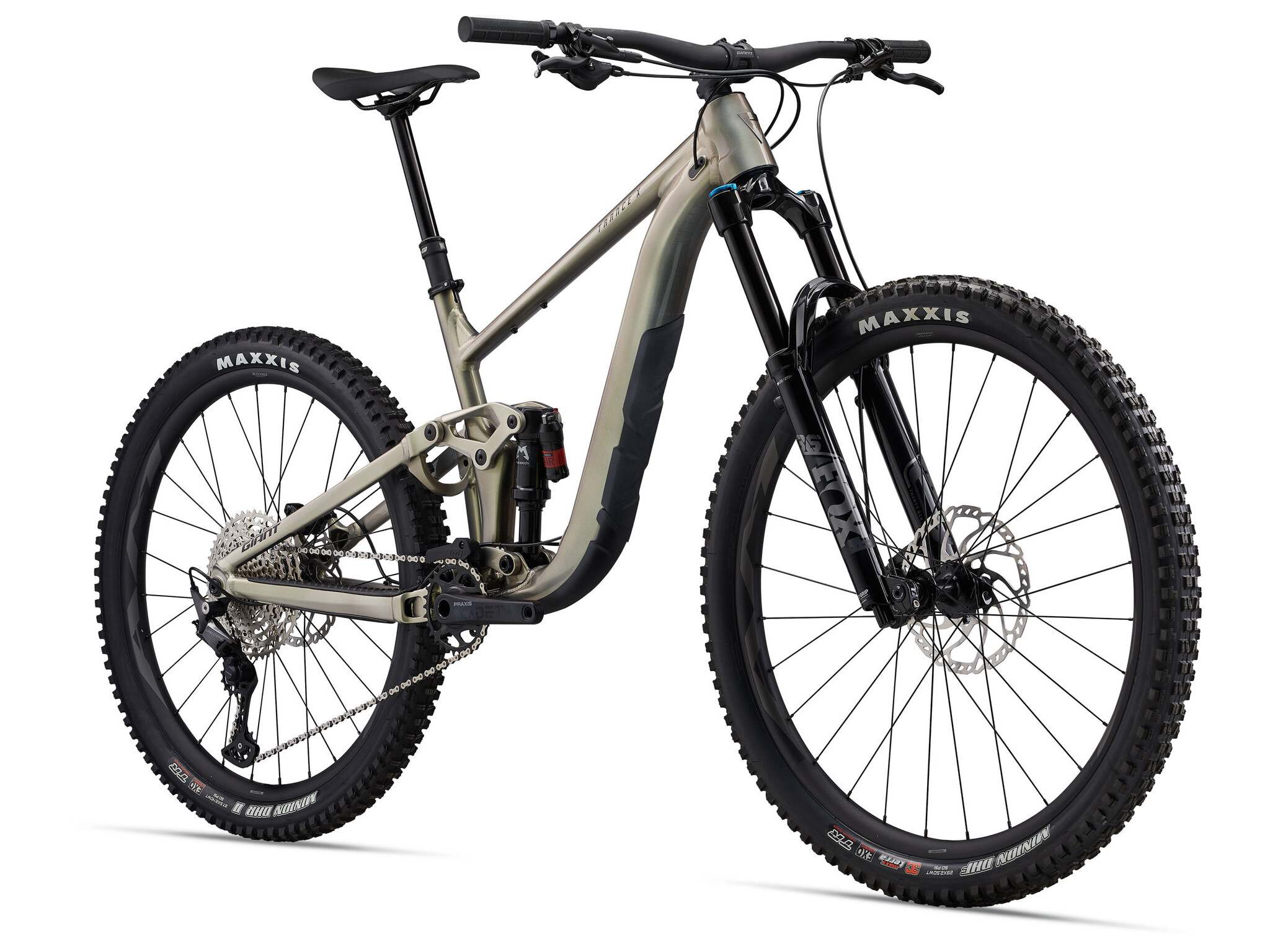

Giant Trance X SX

DESCRIPTION

From loam to chunder, alpine peaks to desert rock, this trail slayer has a 29-inch front wheel and 27.5-inch rear for the ultimate combo of quickness and control. With 145mm of rear suspension, a beefy 160mm fork, and adjustable geometry, it’s ready to let loose on black diamond descents.

KEY PERFORMANCE FACTORS

HIGHLIGHTS

An ALUXX SL aluminum chassis features a new Maestro rear suspension setup with 145mm of rear travel. Combined with a 160mm fork, this longer travel trail bike gobbles up rocks, roots and ruts with total control. The mixed wheel “mullet” setup combines a 27.5-inch rear and 29-inch front, a playful combination that blends rollover capabilities with quick and agile maneuvering. The frame is equipped with two, three-position flip chips. The rear flip chip, located on the rocker arm, lets riders adjust geometry and fine-tune the handling. And a new headset flip chip offers 10mm of reach adjustment to dial in position and fit. New, integrated frame storage inside the down tube makes it easy to carry tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage, and protection on the down tube prevents damage from trail debris and transportation.

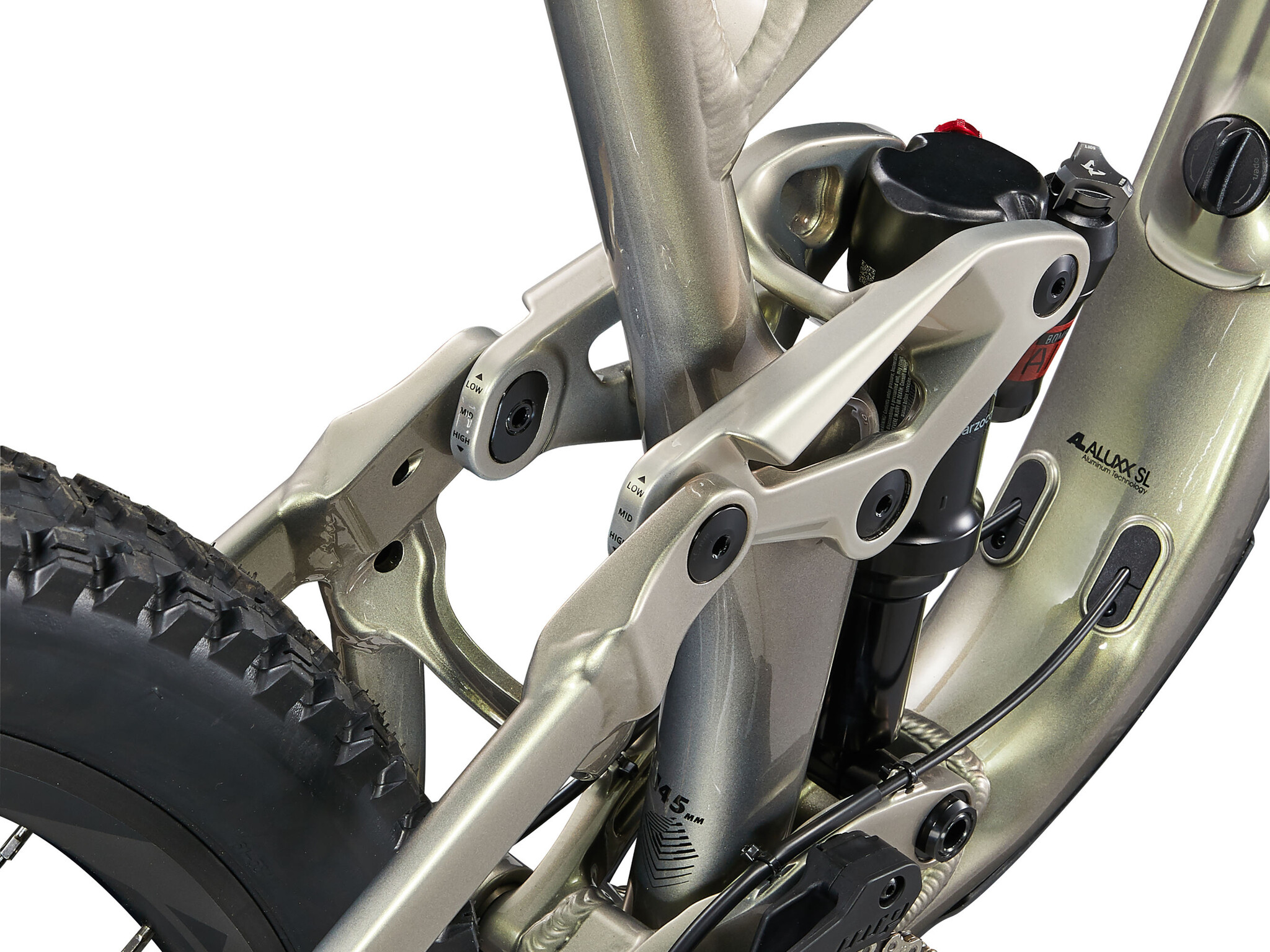

Adjustable Frame Geometry

Flip chip adjustability lets you switch between two settings depending on the terrain you are riding. You can select a 63.2, 63.5 or 63.9-degree head angle and corresponding 75.6, 75.9 or 76.3-degree seat tube angle, resulting in a 30, 26 or 21mm bottom bracket drop (size medium).

Reach Adjust

Three-position flip chip at the headset lets riders dial in cockpit dimensions and geometry. This modular system helps fine tune the bike’s handling and rider position using two positioning chips that can be removed and swapped to achieve a Short (-5mm), Mid (0mm) or Long (+5mm) reach.

Mixed Wheel Setup

A 29-inch front wheel provides speed, stability and front-end control on rough, technical trails. A 27.5-inch rear wheel adds agility and maneuverability to help riders rail corners, pop over features and show off their style.

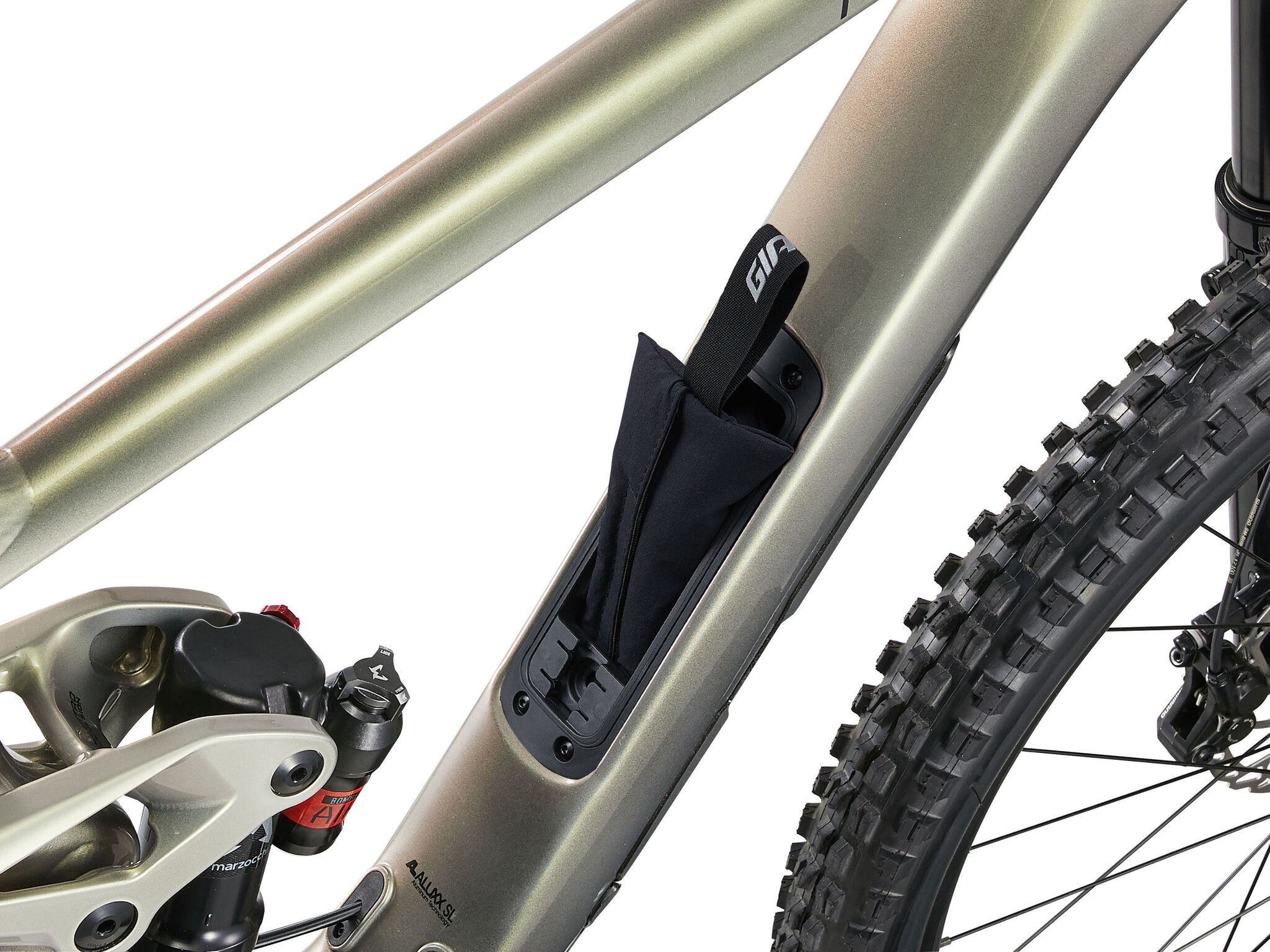

Frame Storage

New integrated frame storage inside the down tube makes it easy to carry tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage.

MegaDrive

A massively oversized bottom bracket area features a fully integrated, 92mm wide design. Asymmetric chainstays provide additional stiffness on the driveside and increased stability on the non-driveside.

Integrated Frame Protection

The driveside chainstay and down tube feature more robust protection against rocks and other trail debris compared to the previous generation.

Boost Technology

Wider hub spacing (110mm front/148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline for optimal drivetrain performance.

FEATURES

Advanced Forged Composite Technology A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.		ALUXX SL Aluminum Technology This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.		Maestro Suspension Technology Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
OverDrive Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.		Tubeless System Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.		Flip Chip - Maestro The flip chip allows riders to quickly adjust the geometry of their Maestro-equipped mountain bike to better suit how and where they ride. It lets riders change the headtube/seattube angles and bottom bracket height via eccentric (offset, two-position) hardware located on the upper rocker arm.

SIZE GUIDE

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
