| Article number: | 1101014194-BLKD-S |
| Availability: | In stock |
DESCRIPTION

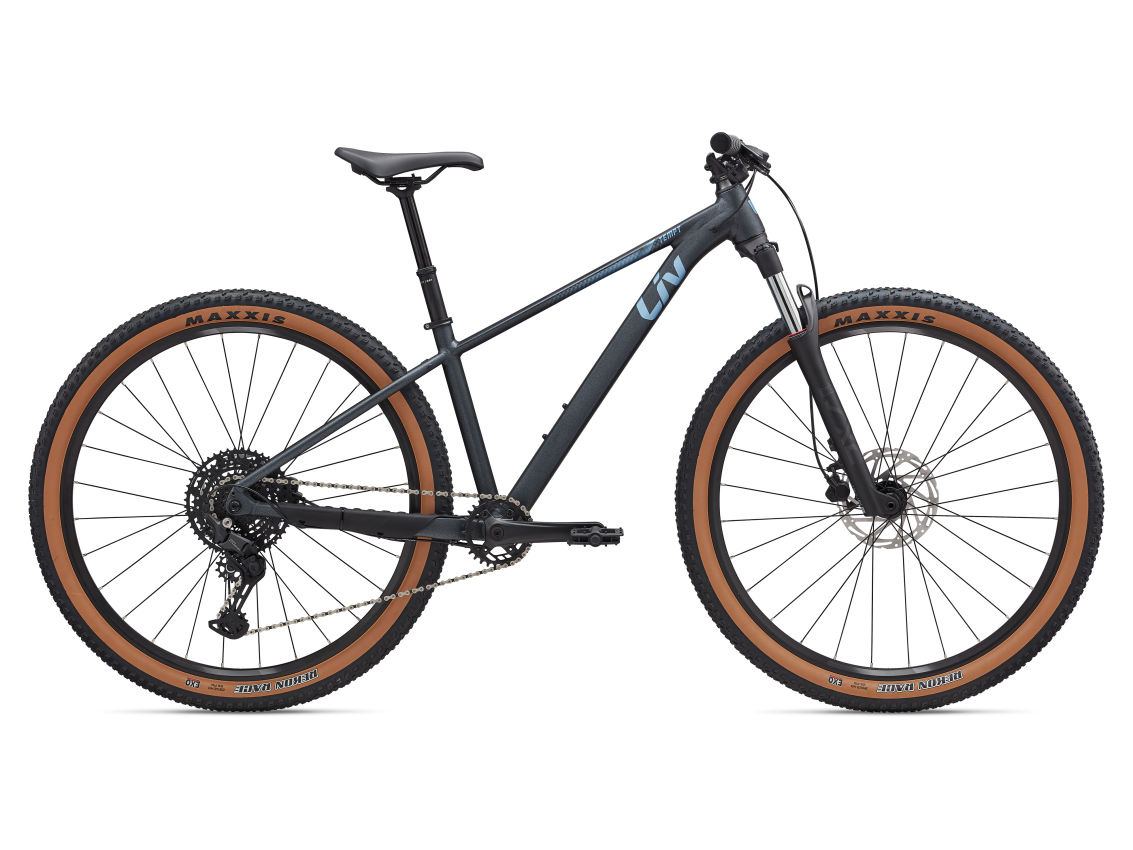

The Liv Tempt opens the door to mountain biking, inviting you to explore rugged trails and experience the outdoors like never before. But it doesn’t stop there — this versatile bike is just as comfortable on city streets, ready to take you wherever your journey leads.
KEY PERFORMANCE FACTORS
Modern MTB DesignTapered fork steerer tubes*, quality components like a 1x drivetrain* with a clutch-equipped rear derailleur, thru-axle hubs*, internal cable routing (including dropper post compatibility), and integrated chainstay protection provide everything you need to build confidence and skills on the trails. (*select models) |
Off-Road ControlThe new geometry is optimized for confident trail riding, with two wheel size options (27.5- or 29-inch) based on frame size. It’s also designed to match front suspension travel with either an 80mm or 100mm fork. All models have clearance for high-volume tires (up to 2.4 inches) for traction and grip on technical terrain. |
Light and DurableThe all-new ALUXX aluminum frame features updated tube shaping and a lighter overall weight for improved performance on off-road terrain. |
HIGHLIGHTS
TAPERED HEAD TUBE
The 1.5-inch tapered head tube makes your bike more stable and easier to control, especially on rocky descents and tight corners.
INTERNAL CABLE ROUTINGAll essential cables—derailleur, brake, and dropper seatpost—are neatly routed inside the frame. This reduces weight, improves performance, and gives your bike a clean, streamlined look.
DROPPER SEATPOST COMPATIBLEA dropper seatpost lets you lower your saddle on the fly, giving you extra control on steep or tricky terrain. Some Tempt models come with this feature, but if yours doesn’t, it’s easy to upgrade. The 30.9mm seat tube diameter and internal cable routing are designed to make adding a dropper seatpost simple.
ALIGNED SEATSTAY JUNCTIONThe rear triangle is designed with seatstays that join the seat tube at the same point as the top tube, forming a unified connection. This clever alignment helps improve rear end stiffness while reducing overall frame weight, leading to a more efficient, lighter ride.
1X AND 2X COMPATIBLEWhether you prefer a single chainring (1x) or a double chainring (2x) crankset, this frame is designed to accommodate both. For those opting for a 1x setup, you’ll benefit from a clutch-type derailleur that ensures your chain stays secure, providing smoother shifting on technical terrain. If you choose a 2x setup, you have the flexibility to use either a side-swing or down-swing front derailleur, allowing you to customize your drivetrain to your preference.
INTEGRATED MOUNTSYour bike should fit your life, not the other way around. That’s why we’ve included mounts on the seatstays and chainstays, making it super easy to add racks, fenders, or a KSA 18 kickstand.
THRU-AXLE WITH UDH HANGERLock in that rock-solid feel with the 12x142mm thru-axle, paired with a UDH (Universal Derailleur Hanger) for smooth shifting and added durability.
CHAINSTAY PROTECTIONOur all-new chainstay protector features an integrated design with fixed cable routing, absorbing chain slap to reduce noise and protect your bike’s frame and finish from damage when encountering rough terrain.
FEATURES
 |
ALUXX Aluminum TechnologyThis Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding style |
SIZE GUIDE
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
| Sizes | Height |
| XS (27.5") | 4'11" - 5'4" |
| S (27.5") | 5'2" - 5'7" |
| S (29") | 5'2 - 5'7" |
| M (27.5") | 5'5" - 5'9" |
| M (29") | 5'5" - 5'9" |
| L (29") | 5'7" - 5'11" |
GEOMETRY
| XS (27.5") | S (27.5") | S (29") | M(29") | L (29") | ||
|---|---|---|---|---|---|---|
| A | Seat Tube Length (inch) | 13 | 14.4 | 15 | 16.1 | 17.7 |
| A1 | Seat Post Insertion Depth (inch) | 11 | 12.2 | 13 | 14.2 | 8.7 |
| B | Seat Tube Angle | 74.0° | 74.0° | 74.5° | 74.5° | 74.0° |
| C | Top Tube Length (inch) | 21.2 | 22 | 22.5 | 23.6 | 24 |
| D | Head Tube Length (inch) | 3.5 | 3.7 | 3.5 | 3.9 | 4.1 |
| E | Head Tube Angle | 67.0° | 67.0° | 67.5° | 67.5° | 68.5° |
| F | Fork Rake (inch) | 1.7 | 1.7 | 1.7 | 1.7 | 2 |
| G | Trail (inch) | 4.1 | 4.1 | 4.3 | 4.3 | 3.7 |
| H | Wheelbase (inch) | 42.5 | 43.3 | 44.4 | 45.6 | 45.7 |
| I | Chain Stay Length (inch) | 17.3 | 17.3 | 17.9 | 17.9 | 17.9 |
| J | Bottom Bracket Drop (inch) | 1.8 | 1.8 | 2.2 | 2.2 | 2.2 |
| K | Stack (inch) | 21.6 | 21.8 | 23.3 | 23.7 | 24 |
| L | Reach (inch) | 15 | 15.7 | 16 | 17 | 17.1 |
| M | Stand Over Height (inch) | 26.8 | 27.1 | 27.1 | 27.9 | 29.8 |
| N | Handlebar Width (inch) | 27.2 | 27.2 | 27.2 | 27.2 | 29.5 |
| O | Stem Length (inch) | 1.6 | 1.6 | 1.6 | 2 | 2 |
| P | Crank Length (inch) | 6.5 | 6.5 | 6.7 | 6.7 | 6.9 |
| Q | Wheel Size | 27.5" | 27.5" | 29" | 29" | 29" |
SPECIFICATIONS
| Sizes | 27.5": XS, S, 29": S, M, L |
| Colours |
Black Diamond
|
| Frame | ALUXX-grade aluminum, disc |
|
Fork
|
Giant SXC32-3 RL, coil spring, 1.5" tapered alloy steerer, 15x110mm thru-axle, XS,S: 80mm (27.5), S, M, L: 100mm (29) |
| Shock | N/A |
| Handlebar | Giant Connect Trail, 31.8mm 27.5" XS: 690mm, S: 690mm 29" S: 750mm, M: 750mm, L: 750mm |
| Grips | Giant Sole-O |
| Stem | Giant Sport, 7-degree 27.5" XS: 40mm, S: 40mm 29" S: 40mm, M: 50mm, L: 50 |
| Seatpost | Giant Contact Swith Core, 30.9mm 27.5" XS:100x350mm, S: 100x350mm 29" S: 100x350mm, M:100x400mm, L : 100x400mm |
| Saddle | Contact Ergo |
| Pedals | MTB caged |
| Shifters | Shimano CUES SL-6000-10R, 1x10 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano CUES RD-U6000 |
| Brakes | Tektro HDC TKD 149, hydraulic, Tektro rotors [F]180mm, [R]160mm |
| Brake Levers |
Tektro TKD 149, for small hands
|
| Cassette | Shimano CUES CS-LG300, 11x48 |
| Chain | KMC X11 |
| Crankset | ProWheel Charm, steel, 52.5mm chainline 32t (27.5") & 30t (29") 27.5" XS: 165mm, S: 165mm 29" S: 170mm, M: 170mm, L: 170mm |
| Bottom Bracket | cartridge |
| Rims | 27.5": Giant GX03V 27.5", alloy, double wall, 21mm inner width 29": Giant GX03V 29", alloy, double wall, 21mm inner width |
| Hubs | alloy, sealed bearing |
| Spokes | stainless, 14g |
| Tires | Maxxis Recon Race 27.5x2.4" or 29x2.4", 60tpi wire bead |
| Extras | 2.4" max tire size, max chainring 32T |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
